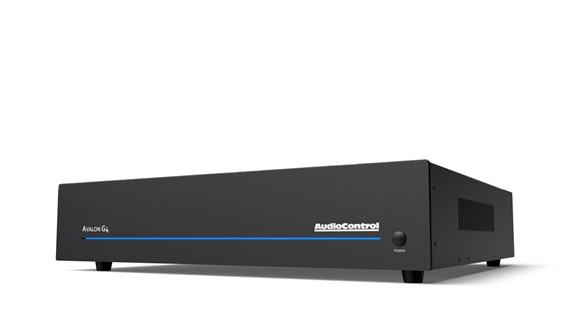

AudioControl Avalon G4

£2,645.00
The Avalon G4 can be easily configured as a 4 channel amplifier, a powerful 2 channel amplifier or as a 2.1 solution without any need for DSP management. Each pair of channels features hi/lo/bypass crossover controls, balanced (XLR) and unbalanced (RCA) inputs as well as RCA throughputs to achieve multiple configuration options. The Avalon G4 also features independent channel level controls, remote power control triggers, and audiophile-grade 5-way binding posts.
Inputs
  • Inputs: 4 RCA Unbalanced, 4 XLR Balanced
  • Input Sensitivity: 1.42 Vrms for full output
  • Maximum Input Voltage: 2.7 Vrms
  • Input Impedance: 100 kΩ

Outputs
  • Amplifier Channels: 4
  • Power Output (8Ω): 230 watts per channel
  • Power Output (4Ω): 300 watts per channel
  • Power Ouput (8Ω Bridged Mono): 600 watts
  • Minimum Speaker Load: 4Ω

Performance
  • Damping Factor: >450
  • Total Harmonic Distortion: 0.04% (230 watts @ 8 ohms 20 Hz-20 kHz)
  • Signal to Noise: >102dB, A-wtd ref Full Output
  • Frequency Response: 10 Hz -20 kHz ±1dB
Control
  • Remote Power Trigger: +12 VDC or Dry Contact Closure

General
  • Peak AC Power Draw (full output 8Ω): 1200 watts
  • Typical AC Power Draw (all channels driven): 400 watts
  • Protection: clipping, short circuit, thermal, DC offset

Weights and dimensions
  • Dimensions: 17”W x 16.5”D x 3.5”H (2U)
  • Weight: 38.0lbs 17.2kg)
Features
  • Award winning theatre amplifier technologies
  • Four channel home theatre amplifier
  • Multi-mode operation: 4 channel, 2.1 channel, and high-power 2 channel
  • 230 watts per channel at 8 ohms; 300 watts per channel at 4 ohms
  • 600 watts at 8 ohms bridged
  • Stable into low impedances
  • Stereo / mono operation
  • Unparalleled Energy Efficiency
  • High Definition BiMOS Outputs
  • Cool Running Class H Operation
  • LightDrive Anti-Clipping Protection Circuitry
  • 5-way Binding Posts
  • Unbalanced RCA inputs with pass through
  • Balanced XLR Inputs
  • Bullet-Proof Reliability
  • Remote 12 volt Trigger
  • Perfect paired with AudioControl’s Maestro X9 or X7 AV processors
