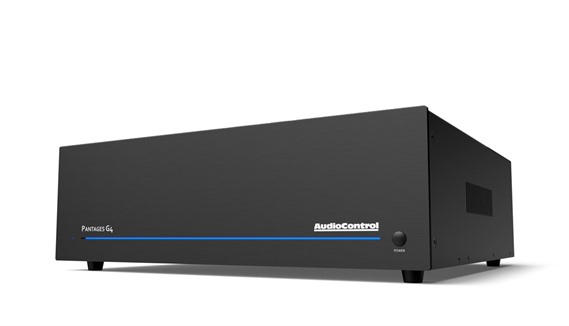

AudioControl Pantages G4

£3,495.00
Incorporating AudioControl’s unique, highly efficient, and cool-running Class H design, the Pantages G4 power amplifier achieves 230 watts per channel at 8 ohms and 300 watts per channel at 4 ohms, all channels driven. The Pantages G4 can also be configured for 600 watts at 8 ohms bridged on select channels to facilitate flexible configurations well beyond powering surround channels. AudioControl’s LightDrive™ built-in anti-clipping protection circuit safely eliminates any possibility of speaker-damaging clipping and distortion, even in extreme conditions.

Designed as a perfect match to AudioControl’s preamp processors or as stand-alone critical listening power amplifier, the Pantages G4 can be configured for anything from a powerful 3 channel listening room to a detailed and dynamic, multichannel home theatre.
Inputs
  • Inputs: 5 RCA Unbalanced, 5 XLR Balanced
  • Input Sensitivity: 1.42 Vrms for full output
  • Maximum Input Voltage: 2.7 Vrms
  • Input Impedance: 100 kΩ

Outputs
  • Amplifier Channels: 5
  • Power Output (8Ω): 230 watts per channel
  • Power Output (4Ω): 300 watts per channel
  • Power Ouput (8Ω Bridged Mono): 600 watts
  • Minimum Speaker Load: 4Ω

Performance
  • Damping Factor: >450
  • Total Harmonic Distortion: 0.04% (230 watts @ 8 ohms 20 Hz-20 kHz)
  • Signal to Noise: >102dB, A-wtd ref Full Output
  • Frequency Response: 10 Hz -20 kHz, ±1 dB
Control
  • Remote Power Trigger: +12 VDC or Dry Contact Closure

General
  • Power Consumption (Standby): < 2W
  • Power Consumption (Idle): 38W
  • Power Consumption (loud listening level): 263W
  • Power Consumption (maximum): 1500W
  • BTU/Hour Output (Standby): 5.6 BTU/hr
  • BTU/Hour Output (Idle): 129 BTU/hr
  • BTU/Hour Output (1/8th power, loud listening level): 313 BTU/hr
  • BTU/Hour Output (maximum): 1791 BTU/hr
  • Protection: clipping, short circuit, thermal, DC offset

Weights and dimensions
  • Dimensions: 17”W x 16.5”D x 5.25”H (3U)
  • Weight: 41.0 lbs (18.6 kg)
Features
  • Award winning theatre amplifier technologies
  • Five channel home theatre amplifier
  • Multi-mode operation: 5 channel, 3.1 channel, 3 channel
  • 230 watts per channel at 8 ohms; 300 watts per channel at 4 ohms
  • 600 watts at 8 ohms bridged on select channels
  • Stable into low impedances
  • Stereo / mono operation
  • Unparalleled Energy Efficiency
  • High Definition BiMOS Outputs
  • Cool Running Class H Operation
  • LightDrive Anti-Clipping Protection Circuitry
  • 5-way Binding Posts
  • Unbalanced RCA inputs with pass through
  • Balanced XLR Inputs
  • Bullet-Proof Reliability
  • Remote 12 volt Trigger
  • Perfect paired with AudioControl’s home theatre preamplifiers
