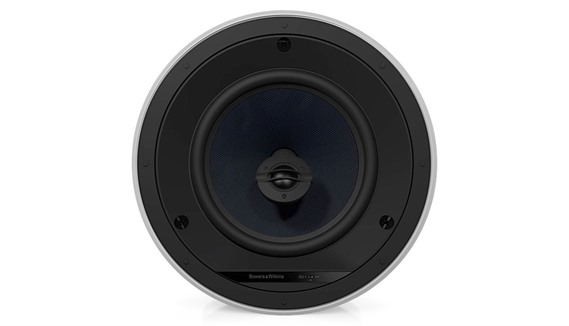

Bowers & Wilkins CCM682 Ceiling Speaker (Pair)

£1,159.00
The Bowers & Wilkins CCM682 in-ceiling speaker combines advanced acoustic technology with a discreet, easy-to-install design. Featuring an 8-inch aramid fiber bass-midrange driver and a 1-inch aluminum dome tweeter, it delivers powerful, detailed sound suitable for a variety of settings. Whether used in a home theater, multi-room audio system, or commercial installation, the CCM682 offers exceptional audio performance while blending seamlessly into any environment. Its user-friendly installation features and adjustable tweeter make it a versatile and reliable choice for both professional installers and DIY enthusiasts, ensuring an outstanding listening experience in any setting.
Technical Specifications

Frequency Response: 35Hz – 50kHz
Sensitivity: 89dB (2.83V, 1m)
Impedance: 8 ohms (nominal)
Power Handling: 150W
Frame Diameter: 290mm (11.4 inches)
Cut-Out Diameter: 250mm (9.8 inches)
Mounting Depth: 133mm (5.2 inches)


Applications


The Bowers & Wilkins CCM682 is versatile and suitable for a wide range of applications:

Home Theater Systems: Provides immersive surround sound, enhancing the cinematic experience with powerful and detailed audio.

Multi-Room Audio Systems: Distributes high-quality sound throughout different rooms, ideal for whole-home audio distribution.

Commercial Installations:
Perfect for offices, retail spaces, and hospitality environments where superior audio quality is essential.
8-Inch Aramid Fiber Cone Bass/Midrange Driver

The CCM682 is equipped with a robust 8-inch (200mm) aramid fiber cone bass/midrange driver. Aramid fiber is renowned for its strength and rigidity, allowing the driver to produce deep, accurate bass and clear midrange frequencies with minimal distortion.

1-Inch Aluminum Dome Tweeter

This speaker features a 1-inch (25mm) aluminum dome tweeter designed to handle high frequencies with precision. Aluminum is lightweight and stiff, providing detailed and accurate high-frequency reproduction.

Adjustable Tweeter

The tweeter can be adjusted post-installation, enabling users to direct the sound to the optimal listening area. This feature allows for fine-tuning of the audio performance based on the room's acoustics and speaker placement.
QuickDogs™ and Plug-and-Play Installation

The CCM682 is designed for quick and easy installation. The QuickDogs™ fixing system and plug-and-play connectivity make the installation process straightforward and tool-free, saving time and effort for both professional installers and DIY enthusiasts.

Low-Profile, Paintable Design

With a low-profile frame and magnetic grille that can be painted to match the ceiling, the CCM682 blends seamlessly into any room decor, ensuring a discreet yet powerful audio solution.

Integrated Back Box

An optional integrated back box is available to enhance acoustic performance by isolating the speaker from the ceiling cavity, ensuring consistent sound quality regardless of the installation environment.
