Bowers & Wilkins CCM684 Ceiling Speaker (Pair)

£659.00

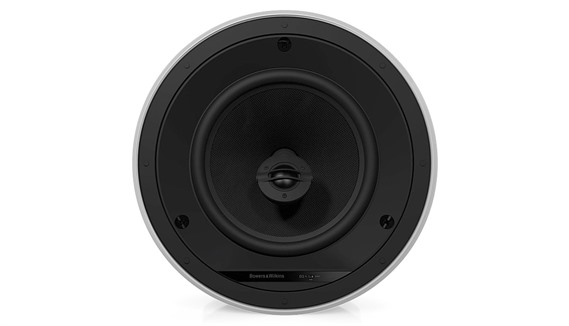

The Bowers & Wilkins CCM684 in-ceiling speaker combines advanced acoustic technology with a discreet, easy-to-install design. Featuring an 8-inch woven glass fiber bass-midrange driver and a 1-inch soft dome tweeter, it delivers powerful, detailed sound suitable for a variety of settings. Whether used in a home theater, multi-room audio system, or commercial installation, the CCM684 offers exceptional audio performance while blending seamlessly into any environment. Its user-friendly installation features and adjustable tweeter make it a versatile and reliable choice for both professional installers and DIY enthusiasts, ensuring an outstanding listening experience in any setting.

Technical Specifications

Frequency Response: 35Hz – 35kHz
Sensitivity: 88dB (2.83V, 1m)
Impedance: 8 ohms (nominal)
Power Handling: 130W
Frame Diameter: 299mm (11.8 inches)
Cut-Out Diameter: 250mm (9.8 inches)
Mounting Depth: 133mm (5.2 inches)

Applications

The Bowers & Wilkins CCM684 is versatile and suitable for a wide range of applications:

Home Theater Systems: Provides immersive surround sound, enhancing the cinematic experience with powerful and detailed audio.

Multi-Room Audio Systems: Delivers high-quality sound in different rooms, ideal for whole-home audio distribution.

Commercial Installations: Perfect for offices, retail spaces, and hospitality environments where superior audio quality is essential.

8-Inch Woven Glass Fiber Cone Bass/Midrange Driver

The CCM684 features a larger 8-inch (200mm) woven glass fiber cone bass/midrange driver. This driver material is known for its rigidity and lightweight properties, allowing it to produce deep, accurate bass and clear midrange frequencies with minimal distortion.

1-Inch Soft Dome Tweeter

Complementing the bass/midrange driver is a 1-inch (25mm) soft dome tweeter. This tweeter provides crisp, detailed high frequencies, creating a balanced and natural sound.

Adjustable Tweeter

The tweeter can be adjusted post-installation to direct the sound precisely where it’s needed. This adjustability helps optimize audio performance based on the room's acoustics and speaker placement.

QuickDogs™ and Plug-and-Play Installation

The CCM684 is designed for easy installation. The QuickDogs™ fixing system and plug-and-play connection make the installation process straightforward and tool-free, saving time and effort for both professional installers and DIY enthusiasts.

Discreet Design

The speaker's low-profile, paintable frame and magnetic grille blend seamlessly into the ceiling, maintaining the room's aesthetics while delivering high-quality sound.

Integrated Back Box

An optional integrated back box can be used to enhance acoustic performance by isolating the speaker from the ceiling cavity. This ensures consistent sound quality regardless of the installation environment.

Bowers & Wilkins continues to uphold its reputation as a leader in the audio industry through a combination of technological innovation, acoustic excellence, and timeless design. Whether for home theaters, multi-room audio systems or commercial installations, Bowers & Wilkins offers a range of ceiling speakers that deliver impressive audio performance while integrating seamlessly into any environment.
