C4-LU862-4800

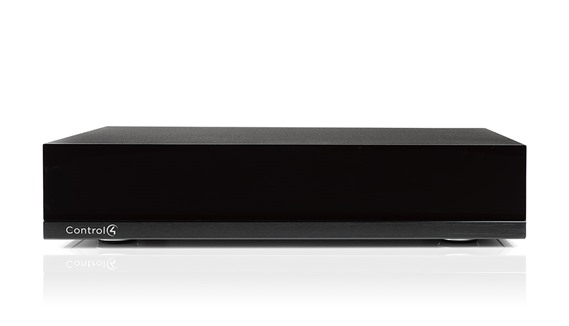

Control4 LU862 8x8 video matrix

The LU862 represents the finest technology in a convenient form factor. This model is capable of distributing 8 HDMI 4K Ultra HD sources to 8 zones, 6 utilizing HDBase T Class A Technology and two additional zones vial local HDMI outputs. The integrated audio matrix can route audio extracted from the 8 HDMI sources and 8 independent coaxial digital inputs to any of the HDBaseT or HDMI outputs and 8 analog audio outputs with variable volume, bass and treble controls as well as audio delay for lip sync correction.
4K Ultra HD compatible.

HDCP 2.2 compliant.

HDBaseT 5 Play support allowing video, surround sound audio and IR and serial control distribution up to 100 meters over a single category cable.

Ultra-compact HDBaseT receivers are powered from the switch, providing for a simple, clean installation.

SDDP allows for easy identification and fast installation. No need to mess with static IP addresses or reservations.

Built-in audio matrix switch features 8 digital (coax) audio inputs (perfect for pairing with digital audio outputs on Control4 EA controllers) that can be routed to any HDMI*, HDBaseT*, or one of 8 analog audio outputs.

* Audio routed from digital (coax) inputs to HDMI or HDBaseT outputs is accompanied by a black video signal.

Downloads
Control4 video matrix data sheet
Video formats
4K formats up to 4K60 4:2:0, 1080p 50/60, 1080i 50/60, 720p 50/60, 576p, 480p, mandatory 3D formats as minimum, DVI formats.

Audio formats
All common surround sound formats including Dolby Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, Dolby Pro Logic, Dolby AC-3, DTS, DTS Neo:6, DTS-ES, DTS-HD Master Audio, DTS-HD, DTS:X, THX Surround EX, LPCM, Multichannel PCM

Colour / HDR
Colour space: RGB, YUV. HDR Static Metadata supported.
HDR @ FHD: 1080p60 4:4:4 10, 12, 16bit per pixel (30, 36, 48bit colour)
HDR @ UHD: 3840x2160p30 4:2:0 10bit (30bit colour)

HDCP
All video inputs and outputs support HDCP 1.4 and HDCP 2.2

HDMI inputs / outputs
8 / 2

HDBaseT outputs
6

Audio inputs / outputs
8 / 8

Audio downmixing
No
IR over HDBaseT
Yes

RS232 over HDBaseT
Yes

Audio breakout
Yes

Ethernet
1000Base-T Ethernet Port with internal Ethernet switch supporting 100Base-TX full-duplex Ethernet routing to all remote HDBaseT ports.

RJ45 shielded connector.

Ethernet over HDBaseT
Yes

Max HDBaseT range
100m

Status LEDs
Front panel LEDs: Power, Link, Media, Alert
