CA-10-3522

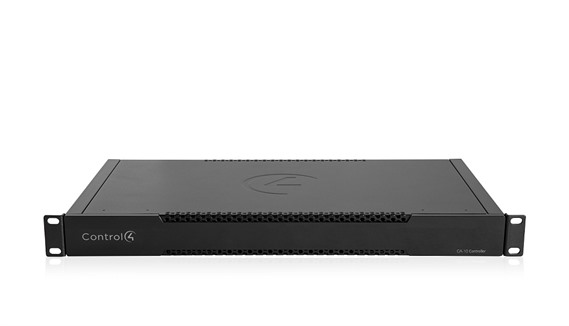

Control4 CA-10 controller

The CA-10 Automation Controller is the newest and most powerful member of the award-winning line of Control4 controllers. It is purpose built for big jobs, delivering 4× the processing power and memory of the EA-5 to provide great performance even when controlling thousands of devices.
The Control4 CA-10 is fault tolerant, engineered with multiple fail-safes to protect the system and keep it up and running even if a power supply, network port, solid-state drive (SSD), or fan fails.

Fail-over notifications are also available through programming events so the system can automatically notify the dealer.

The CA-10 works as the primary controller to provide the muscle for the project. Secondary controllers like the EA-5 and EA-3 provide streaming music and I/O; and EA-1 controllers behind every TV provide the on-screen TV interface.

The Control4 CA-10 is also the perfect controller for small business applications, where service agreements require the most reliable solution possible, including a standard five-year warranty.
4 x the processing power and memory of the EA-5

Project is stored on dual solid-state, field-replaceable drives in mirrored RAID configuration

Dual power supplies with automatic switch-over

Oversize heatsink with heat pipe technology to keep the system cool and reliable

Redundant cooling fans powerful enough to cool the controller even when one fan fails

Dual gigabit Ethernet interfaces

Programmable dealer service notifications
CA-10 Features
2 × Ethernet—10/100/1000BaseT (redundant connections)

Dual 32 GB (minimum) solid-state drives (SSD) in RAID 1configuration

2 USB 3.0 ports-1A

AC power supply accepts 100-240V at 50-60 Hz (1A)

Dual redundant power supplies with auto failover

Power consumption Max 70W (239 BTU/hr)

2 redundant fans

Dimensions
444 × 258 × 44 mm (17.5 × 10.125 × 1.72")

Weight
4.33 kg (9.55 lb)

Minimum OS version
Requires Control4 Smart Home OS 3.1 or newer
