C4-VDB-450

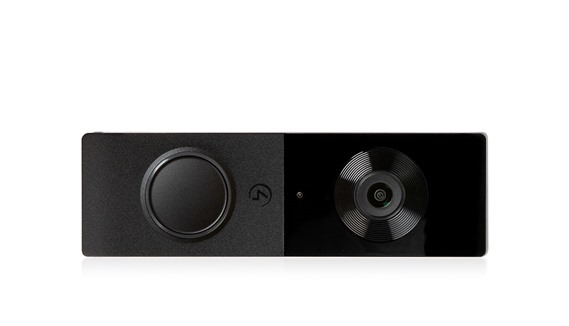

Control4 Chime video doorbell

Introducing Chime, the first video doorbell designed for the Control4 smart home. With Chime, homeowners can see and talk to visitors at the front door from the Control4 mobile app or touchscreen while controlling any smart home feature imaginable. Chime delivers everything you’d expect from a video doorbell, plus so much more by leveraging the power of the smart home to deliver convenience, security, and peace of mind.
Features and benefits
Video doorbell that fully integrates with Control4 smart home
5MP HD camera with 180-degree field of view
Two-way audio, no push and release required
Five customizable motion zones with sensitivity control
Night mode and IR LEDs
Stores seven days of event recordings in the cloud
Wi-Fi and PoE models
Available in black and satin-nickel finishes

Downloads
Control4 Chime video doorbell data sheet
Video
Camera resolution - 5MP
Video resolution - Up to 1600 × 1200
Substream - Up to 1024 × 768
Frames per second - Up to 24 FPS
Video substream - Yes
Video codec - H.264 or MJPEG
Integrated IR LEDs for night mode
Aspect ratio - 4:3, nearly 180-degree horizontal FoV
5 configurable motion zones

Audio
Built in omnidirectional microphone
Built in speaker
G.711 codec
Mechanical
H130mm x W40mm x D28mm
Weight - 159g
Available colours - Black and Satin nickel

Power
PoE 802.3af or 16-24V
