NE-RMT-675

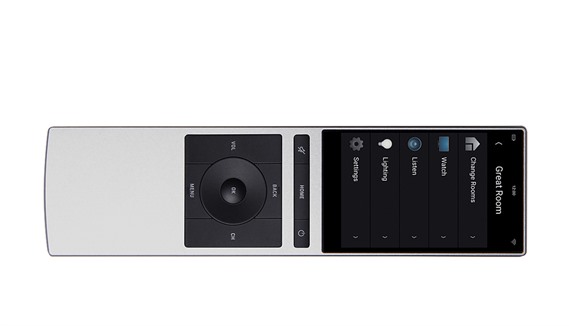

Control4 Neeo remote

The Neeo remote puts the power of Control4 Smart Home OS 3 in the palm of your hand. Engineered by Swiss designers, the Neeo remote controls television, movies, music, lights, thermostats, and virtually anything else in a Control4 smart home.

If you already own a Control4 system running OS 3.1 or above, the NEEO remote can be purchased and easily added to your system without the need for an engineer visit. Set-up is quick and simple by following the on screen instructions. NEEO for Control4 is available in black and silver aluminum. Please contact us for more information.
Display
Ultra-thin bezel
81 mm (3.2 inches) (diagonal)
LED backlit
Widescreen
Multi-touch display with IPS technology
480-by-800-pixel resolution at very high density of 291 ppi
Fingerprint-resistant coating
Fully laminated
Unique multilayer design for thin bezels

Downloads
Neeo remote data sheet
Ports and interfaces
WiFi (802.11b/g/n)
Accelerometer
Charging connector (gold plated)

System
ARM® Cortex M4 single-core @ 168 MHz
Running extremely efficient OS
Intelligent power management
64 MB RAM

System requirements

Control4 OS 3.1.0 or newer
WiFi (802.11b/g/n) 2.4 Ghz wireless network

Power
1270mAH Li-ion battery
External 10W charger (included)
Charging via docking station (included)
Size and weight
Remote: 182 × 49 × 9 mm (7.15 × 1.91 × 0.37 in.)
Remote weight: 125 g (4.41 oz.)
Base: 16 × 70 mm (0.63 × 2.76 in.)
Base weight: 355 g (12.52 oz.)

Included in the box
Neeo Remote for Control4
Docking station
10W power supply (includes power cord)
Documentation

Environmental
Operating temperature: 0 to 35 °C (32 to 95 °F)
Storage temperature: -20 to 45 °C (-4 to 113 °F)
Relative humidity: 10-
