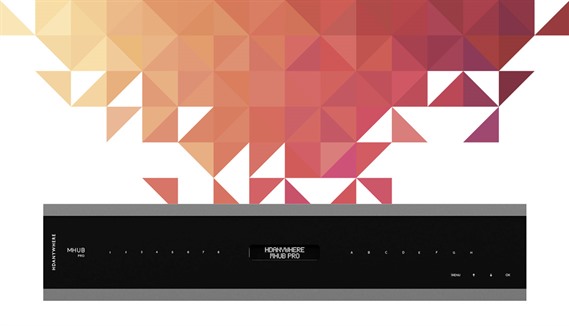

HDanywhere MHub Pro (8x8) 40

The MHub Pro (8x8) 40 is the ultimate AV solution for the connected home. De-cluttering TV zones and delivering stunning UHDHDR 4K content, fast ethernet connectivity and universal control across your home. The system comprises of a central hub (where all HDMI sources are connected) and eight palm-sized, discreet lightweight receiver units which sit behind each screen and draw power from the central hub. No additional power cables are required keeping things neat, hidden and simple.br br Eight 4K HDMI sources can be shared to up to eight long-range screen locations via network cabling using advanced HDBaseT signal technology which doesn’t introduce any degradation in audiovideo quality, even at Ultra HD Blu-ray playback resolutions (4K60 4:2:0 HDR at 24 frames) and supports all audio formats up to and including Dolby Atmos and DTS:X for the most immersive AV experience possible today.
  • HDMI® 2.0 features supported up to 10.2Gbps
  • Backlit fade in/out touch panel controls
  • All display receivers powered via PoH
  • Web GUI for easy config and setup (MHUB-OS)
  • Remote system monitoring and management (HDA Cloud)
  • Supports HDCP 2.2 Ultra HD 4K 24/30Hz 4:2:2 (HDR10) or 60Hz 4:2:0 (HDR 8bit)+ support for Dolby Vision and HLG.
  • Supports all current audio formats up to and including Dolby Atmos® and DTS:X®
  • Multichannel audio extraction via digital-coax, or audio downmix via stereo jack
  • Easy and instant integration with MHUB AUDIO
  • 4K>1080 down/up-scaling receiver option available
  • Sold as a complete install package, with all receivers, IR cables and mounting kit included
  • Form factor - 19”/2U aluminium rack-mountable unit
  • Inputs x outputs - 8 HDMI x 8 RJ45 HDBaseT + 8 mirrored HDMI
  • Transmission tech - HDBaseT (VS010)
  • Video bandwidth - 340MHz clock / 10.2Gbps data
  • ESD protection - ± 8kV (air-gap discharge) ± 4kV (contact discharge)
  • Hub control - Web GUI, IR, TCP/IP, RS232, App, Alexa
  • App control - Full control over sources, matrix hub & display functions.
  • Device weight - Hub 4600g, RX 192g
  • Package weight - 8500g
  • Dimensions (W/D/H) - Hub 440 / 380 / 90mm (without feet), RX 163 / 94 / 19mm
  • Operating temperature - 32°F to 104°F (0°C to 40°C)
  • Storage temperature - -4°F to 140°F (-20°C to 60°C)
  • Relative humidity - 20~90 % RH (non-condensing)
  • Power consumption - 30W (max) 0.5W (standby)
  • Guarantee - 3 year guarantee as standard or 4 years with cloud registration
In the box
  • 1 x MHub Pro (8x8) 40 video matrix
  • 1 x Pair of rack ears
  • 8 x PoE display receivers
  • 8 x Pairs of mounting brackets for display receivers
  • 1 x Multi-room IR remote control
  • 1 x Serial cable
  • 9 x IR transmitters
  • 10 x IR receivers
