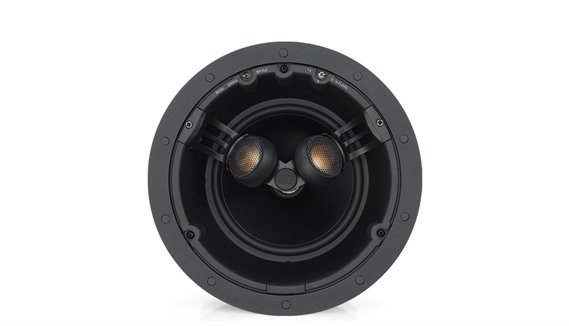

Monitor Audio C265 FX Ceiling Speaker

Technical Specifications

Frequency Response: 60Hz – 30kHz
Sensitivity: 88.5 dB
Nominal Impedance: 6 ohms
Driver Complement: 1 x 6.5-inch C-CAM woofer, 2 x 1-inch C-CAM gold dome tweeters
Power Handling: 20 – 85 watts
Dimensions: Diameter 250 mm x 149 mm
Cut-Out Diameter: 211 mm
Grille: Magnetic, paintable

Applications

Home Theater Surround Sound: The C265-FX is ideal for creating an immersive surround sound experience in home theater systems. Its dual-mode capability allows it to adapt to different types of soundtracks, whether you need a diffuse ambient effect or a more focused surround sound.

Multi-Room Audio Systems: The C265-FX can also be integrated into multi-room audio systems, providing high-quality surround sound in any room without compromising on aesthetics. Its discreet design ensures that it does not interfere with the room’s décor while delivering exceptional audio performance.

Versatile Audio Installations: The speaker’s dual-mode operation and advanced driver technology make it suitable for a wide range of audio installations, from dedicated home theaters to living rooms and multi-purpose spaces.

Dual Mode Design (Dipole/Bipole)

Versatility in Sound Projection: The C265-FX features a unique dual-mode design, allowing it to switch between dipole and bipole operation. This feature makes it adaptable to different surround sound requirements.

Dipole Mode: In dipole mode, the speaker creates a diffuse sound field, ideal for delivering enveloping ambient effects. This mode is particularly suited for creating a cinematic experience where the sound comes from all around without localising the speaker’s position.

Bipole Mode: Bipole mode, on the other hand, provides a more direct sound, with the drivers working in phase to create a wider, more immersive soundstage. This mode is perfect for music or home theater setups where a more focused surround effect is desired.

Two 1-Inch C-CAM Gold Dome Tweeters

High-Frequency Accuracy: The C265-FX is equipped with two 1-inch gold dome tweeters made from C-CAM (Ceramic-Coated Aluminum Magnesium), known for their excellent rigidity and low distortion. These tweeters are crucial in delivering clear, detailed high-frequency sounds, essential for reproducing the subtle details in music and movie soundtracks.

Diffuse Sound Field Creation: The strategic placement and phasing of the tweeters in both dipole and bipole modes help to create a wide and enveloping sound field, enhancing the listener’s experience of surround sound.

6.5-Inch C-CAM Woofer

Powerful and Controlled Bass: The 6.5-inch woofer, also made from C-CAM, handles the midrange and bass frequencies with precision. The woofer’s construction allows it to move air efficiently, providing tight and impactful bass that adds depth to the audio without distortion.

Wide Frequency Response: The woofer’s design and material contribute to the C265-FX’s wide frequency response, ensuring that the speaker can reproduce both the rich, deep bass and the clear, articulate midrange tones essential for a balanced audio experience.

Discreet Aesthetic and Installation

Flush Mounting Design: The C265-FX is designed to sit flush with the ceiling, making it virtually invisible once installed. This minimalist design allows the speaker to blend seamlessly into any room’s décor, maintaining the aesthetics while delivering high-quality sound.

Magnetic Grille: The speaker comes with a low-profile, paintable magnetic grille, making it easy to match the speaker with the ceiling color. The magnetic design also allows for easy removal and reattachment, simplifying access for maintenance.

Optimised for Surround Sound

Ideal for Home Theaters: The C265-FX is specifically designed to function as part of a surround sound system, making it perfect for use as rear or side speakers in a home theater setup. Its ability to create a diffuse sound field in dipole mode enhances the sense of immersion, while bipole mode allows for a more directed surround effect when required.

Configurable to Room Acoustics: The dual-mode operation means that the C265-FX can be configured to suit different room acoustics and personal preferences, ensuring that it delivers the best possible sound experience regardless of the listening environment.

Tri-Grip Fixing System

Secure Installation: The Tri-Grip fixing system ensures that the C265-FX can be securely mounted in the ceiling. This three-point fixing mechanism provides a stable and robust installation, preventing any movement or vibration that could affect the sound quality.

Ease of Installation: The Tri-Grip system is designed for easy and quick installation, making the speaker accessible to both professional installers and DIY enthusiasts.
