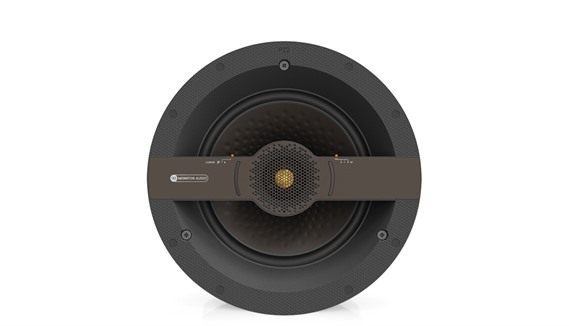

Monitor Audio C2M Ceiling Speaker

£400.00
The Monitor Audio C2M is a high-performance in-ceiling speaker from the Creator Series, designed for superior audio quality in both residential and commercial settings. It features a 7" RST II mid-bass driver and a 1" C-CAM tweeter with UD Waveguide II, delivering detailed and immersive sound with a wide frequency response from 35 Hz to 35 kHz. The C2M has a sensitivity of 86 dB and can handle up to 75W RMS power, with a peak of 150W. It includes the Quik-Link connector and Tri-Grip II mounting system for easy installation, and offers customisable grille options.
Technical Specifications

Frequency Response: 35Hz - 35kHz
Impedance: 8 ohms
Sensitivity: 86 dB (1W@1M)
Power Handling: 40 - 150 watts

Drivers:
7-inch RST II mid-bass driver and 1-inch C-CAM tweeter

Overall Dimensions (with grille):
242 mm x 103 mm
Cut-Out Dimensions: Diameter 212 mm
Mounting Depth: 99 mm
Weight: 2 kg


Monitor Audio Lifetime Warranty

Applications and Use Cases

The C2M is versatile, suitable for a variety of applications including home theaters, multi-room audio systems, and commercial installations.

Its ability to deliver detailed sound makes it ideal for both background music and critical listening environments.

The robust construction and high-quality materials ensure longevity and consistent performance, even in demanding applications.
Advanced Driver Technology

7" RST II Mid-Bass Driver: The C2M's mid-bass driver utilises Monitor Audio's Rigid Surface Technology II (RST II), which features a dimpled surface design. This design increases the driver's rigidity and reduces mass, minimising distortion and enhancing the accuracy of mid-range and bass frequencies. The 7-inch size offers a good balance between bass depth and midrange clarity, making it suitable for a wide variety of audio content.

1" C-CAM Tweeter: The tweeter is constructed from Ceramic-Coated Aluminum/Magnesium (C-CAM), a material known for its excellent damping properties and high rigidity. This allows the tweeter to produce clear and detailed high frequencies with minimal distortion. The use of C-CAM also ensures durability and a consistent performance over time.

UD Waveguide II: The tweeter is paired with the Uniform Dispersion Waveguide II (UD Waveguide II), which optimises the dispersion of high frequencies. This waveguide design ensures a wide and even sound field, making the C2M ideal for larger rooms or open-plan areas where even sound distribution is crucial. The waveguide helps in maintaining clarity and detail, even when listeners are off-axis from the speaker.


Performance and Technical Specifications

The Monitor Audio C2M is designed to deliver high-fidelity audio, suitable for various listening environments and audio setups.

Frequency Response: The speaker boasts a frequency response of 35 Hz to 35 kHz, covering a broad spectrum of sound. This wide frequency range ensures that the C2M can accurately reproduce both deep bass and high treble, making it suitable for both music and cinematic audio.

Sensitivity: With a sensitivity rating of 86 dB, the C2M is efficient at converting amplifier power into sound. This efficiency means that the speaker can deliver high sound levels without requiring excessive amplifier power, making it compatible with a wide range of audio systems.

Power Handling: The C2M can handle up to 75W RMS (continuous power) and 150W peak power. This power handling capability ensures that the speaker can deliver dynamic and impactful sound, even at higher volumes. It is particularly beneficial for larger rooms or high-ceiling installations where more powerful sound output is needed.

Impedance: The nominal impedance of the C2M is 8 ohms, with a minimum impedance of 6.5 ohms. This standard impedance level makes the speaker compatible with most amplifiers and audio receivers, offering flexibility in system integration.
Innovative Installation Features

The C2M includes several features designed to simplify the installation process and ensure a secure, long-lasting setup.

Quik-Link Connector: The Quik-Link connector system is a unique feature that simplifies speaker wiring, allowing for quick and secure connections. This system is particularly useful in larger installations or setups where multiple speakers are used, reducing the time and effort required for wiring.

Tri-Grip II Mounting System: The Tri-Grip II mounting system ensures a secure and stable installation. This three-point fixing mechanism provides a firm hold, reducing vibrations that could affect sound quality. The Tri-Grip II system also makes the installation and removal of the speaker straightforward, accommodating both new constructions and retrofit projects.


Design and Aesthetic Considerations

The C2M is designed to integrate seamlessly into any environment, providing both high-performance audio and aesthetic flexibility.

Low-Profile, Paintable Grilles:
The speaker comes with a low-profile grille that can be painted to match the ceiling. This feature allows the C2M to blend in with the surrounding decor, making it nearly invisible once installed. This is particularly important in spaces where aesthetics are a priority, such as in high-end residential areas or stylish commercial environments.

Optional Grille Shapes: The C2M offers optional grille shapes, including both round and square options. This flexibility allows for customisation to suit different interior designs and preferences, ensuring that the speaker can complement any room layout or style.


You May Also Like...

> Monitor Audio C2S Ceiling Speaker
> Monitor Audio C2L Ceiling Speaker
> Monitor Audio C2M-T2X Ceiling Speaker
> Monitor Audio C2L-T2X Ceiling Speaker
Monitor Audio Creator Series Speakers

Tri-Grip II

Tri-Grip II is an advanced mounting system used in Monitor Audio's Creator Series speakers. It features a three-point fixing mechanism that provides a secure and stable attachment to ceilings or walls. This system minimises vibrations and ensures optimal sound quality. The Tri-Grip II also allows for quick and easy installation, making it user-friendly for both professional installers and DIY enthusiasts. It's designed to accommodate various architectural settings and ensure a flush, aesthetically pleasing finish.
Monitor Audio Creator Series Speakers

Quick-Link

Quick-Link is an innovative feature designed for easy and efficient speaker installation. This connector system simplifies the wiring process, allowing for quick and secure connections between the speaker and the amplifier or receiver. It is particularly beneficial in multi-speaker setups, where it significantly reduces the time and effort required for installation. The Quick-Link system is a standard feature in Monitor Audio's Creator Series, ensuring reliable and hassle-free installations across various environments.

Tier 1 Ceiling Speakers

A versatile range of small, medium and large speakers designed for cost-effective installations, prioritising product simplicity and reliable acoustic performance.

Features
Two-way arrangement
C-CAM mid-bass drivers
C-CAM tweeter with UD Waveguide I
Tri-Grip II
Quik-Link

Tier 2 Ceiling Speakers

This range of small, medium and large in-ceiling speakers retains the engineering excellence of Tier 1 while offering enhanced acoustic performance. It includes additional features like boundary correction, high-frequency cut/boost, and the dual-stereo T2X, providing greater flexibility in speaker placement.

Features
Two-way arrangement
RST II mid-bass drivers
C-CAM tweeter with UD Waveguide II
Controlled Performance
T2X-Model
Tri-Grip II
Quik-Link

Tier 3 Ceiling Speakers

This high-performance range of medium and large in-ceiling speakers builds on the engineering excellence of Tier 2, offering enhanced acoustic performance. It includes additional features for versatile speaker placement, such as boundary correction and mid/high-frequency cut/boost options, along with advanced acoustic technologies.

Features
Three-way arrangement
RDT III bass drivers
IDC II coaxial mid/tweeter drivers with UD Waveguide II
Controlled Performance
Tri-Grip II
Quik-Link

Monitor Audio Creator Series Speakers

Monitor Audio Creator Series ceiling speakers offer a range of high-quality, in-ceiling audio solutions designed for versatile applications. These speakers feature advanced C-CAM (Ceramic-Coated Aluminum/Magnesium) drivers, including mid-bass drivers and tweeters, which provide exceptional sound clarity and detail. Creator Series ceiling speakers are ideal for both residential and commercial installations.
