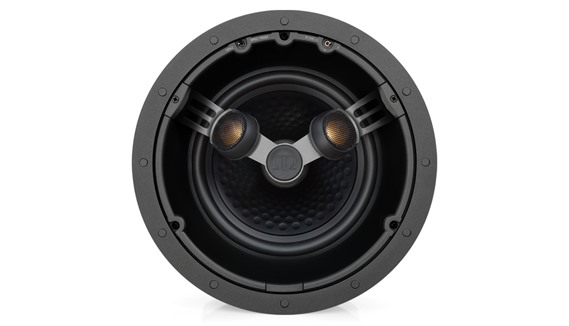

Monitor Audio C380 FX Ceiling Speaker

Technical Specifications

Frequency Response: 45Hz – 30kHz
Sensitivity: 90 dB
Nominal Impedance: 6 ohms
Driver Complement: 1 x 8-inch C-CAM bass driver, 1 x 4-inch C-CAM RST midrange driver, 2 x 1-inch C-CAM gold dome tweeters
Power Handling: 30 – 120 watts
Dimensions: Diameter 285 x 156 mm
Cut-Out Diameter: 247 mm
Grille: Magnetic, paintable

Applications

Home Theater Surround Sound: The C380-FX is specifically designed for use as part of a home theater system, where its dual-mode capability and high-performance drivers can deliver an immersive and dynamic surround sound experience. Whether used as rear or side speakers, the C380-FX ensures that every detail of the audio is faithfully reproduced, creating a true cinematic experience at home.

Multi-Room Audio Systems: The speaker can also be integrated into multi-room audio setups, providing high-quality sound in various rooms while maintaining a consistent and aesthetically pleasing appearance throughout the home.

Custom Installations: With its versatile configuration options and discreet design, the C380-FX is ideal for custom audio installations where both performance and visual integration are important considerations. Its ability to switch between dipole and bipole modes allows it to be tailored to different listening environments and preferences.

Dual-Mode Surround Sound (Dipole/Bipole Configuration)

Flexible Sound Reproduction: The C380-FX offers a dual-mode configuration, allowing it to operate in either dipole or bipole mode. This flexibility enables the speaker to adapt to different surround sound requirements, making it suitable for various home theater setups.

Dipole Mode: In dipole mode, the drivers are configured to produce out-of-phase sound, creating a diffuse and enveloping audio experience. This mode is particularly effective for ambient sound effects, ensuring the listener is fully immersed in the audio environment.

Bipole Mode: Bipole mode, where the drivers work in phase, delivers a more focused and direct sound. This configuration is ideal for creating a wider soundstage and is often preferred in setups where precise localisation of sound is necessary.

Three-Way Driver Design

High-Performance Audio: The C380-FX is a three-way speaker, featuring an 8-inch C-CAM (Ceramic-Coated Aluminum Magnesium) bass driver, a 4-inch C-CAM RST (Rigid Surface Technology) midrange driver, and dual 1-inch C-CAM gold dome tweeters. This combination ensures a full-range audio performance with exceptional clarity across all frequencies.

C-CAM Technology: C-CAM material is renowned for its rigidity and lightness, allowing the drivers to deliver accurate and detailed sound with minimal distortion. This technology ensures that the C380-FX produces clear highs, detailed midrange, and powerful bass.

8-Inch C-CAM Bass Driver

Deep and Controlled Bass: The 8-inch bass driver is responsible for reproducing low frequencies with precision and impact. Thanks to the C-CAM construction, the driver can move more air with less distortion, resulting in deeper and more controlled bass that enhances the overall listening experience.

Wide Frequency Response: The large bass driver contributes to the speaker's ability to reproduce a broad frequency range, ensuring that the C380-FX can handle everything from subtle background music to explosive cinematic sound effects.

4-Inch C-CAM RST Midrange Driver

Enhanced Midrange Clarity: The inclusion of a dedicated 4-inch midrange driver, utilizing Monitor Audio’s Rigid Surface Technology (RST), allows the C380-FX to deliver clear and detailed midrange frequencies. This is crucial for reproducing vocals and instruments with accuracy, making dialogues and musical performances sound more natural and lifelike.

Rigid Surface Technology (RST): The RST cone design incorporates a dimpled surface that increases the driver's rigidity, reducing unwanted resonances and ensuring cleaner sound output. This technology also helps in achieving more dynamic and accurate sound reproduction.

Dual 1-Inch C-CAM Gold Dome Tweeters

Pristine High Frequencies: The C380-FX is equipped with two 1-inch gold dome tweeters, which are capable of reproducing high frequencies with remarkable detail and precision. These tweeters ensure that the treble sounds are crisp and clear, adding a layer of brightness and airiness to the overall sound signature.

Diffuse Sound Field Creation: The strategic placement and phasing of the tweeters in dipole mode allow the C380-FX to create a wide and immersive sound field, enhancing the surround sound effect in home theater setups.

Tri-Grip Fixing System

Secure and Easy Installation: The Tri-Grip fixing system is designed to provide a secure and stable installation, ensuring that the speaker is firmly mounted to the ceiling. This system uses three self-aligning clamps that distribute the clamping pressure evenly, reducing the risk of damage to the ceiling material.

Simplified Installation Process: The Tri-Grip system makes the installation process straightforward and accessible, even for those with limited experience in speaker installation. This feature ensures that the C380-FX can be easily and securely installed in any ceiling.

Discreet Aesthetic Design

Flush-Mounted Appearance: The C380-FX is designed to sit flush with the ceiling, making it nearly invisible once installed. This discreet design ensures that the speaker blends seamlessly with the room’s décor, maintaining the aesthetic integrity of the space while delivering high-quality sound.

Magnetic Grille: The speaker comes with a paintable magnetic grille that can be easily removed and reattached. This allows for customisation to match the ceiling color, further enhancing the speaker’s ability to integrate into any room without drawing attention to itself.
