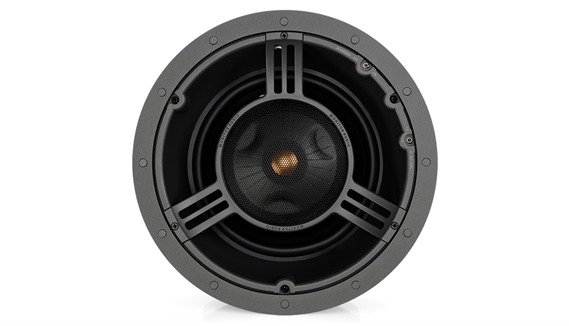

Monitor Audio C380 IDC Ceiling Speaker

Technical Specifications

Frequency Response: 45Hz – 30kHz
Sensitivity: 90 dB
Nominal Impedance: 6 ohms
Driver Complement: 8-inch C-CAM bass driver, 4-inch IDC midrange driver, 1-inch C-CAM gold dome tweeter
Power Handling: 50 – 150 watts
Dimensions: Diameter 285 mm x 156 mm
Cut-Out Diameter: 247 mm
Grille: Magnetic, paintable

Applications

Home Theater Systems: The C380-IDC excels in home theater applications, where its wide frequency response and precise sound dispersion create an immersive audio environment. The speaker can be used as part of a surround sound setup, delivering rich and dynamic audio that brings movies to life.

Multi-Room Audio: For those looking to create a consistent audio experience throughout their home, the C380-IDC can be integrated into a multi-room audio system. Its discreet design ensures that it does not interfere with the room’s décor while providing high-quality sound in every corner.

High-Fidelity Audio Installations: Audiophiles will appreciate the C380-IDC’s ability to deliver detailed and accurate sound without the need for large, visible speakers. Its advanced technologies ensure that it meets the demands of high-fidelity audio reproduction, making it a perfect choice for those who prioritize sound quality.

Inverted Dual Concentric (IDC) Driver Module

Innovative Design: The C380-IDC features Monitor Audio’s proprietary IDC driver module, which combines a 4-inch midrange driver and a 1-inch gold dome tweeter into a single, coaxial unit. This design is pivotal in enhancing phase coherence, which significantly improves imaging and the overall soundstage.

Wide Dispersion: The IDC module’s ability to pivot offers a wide dispersion pattern, ensuring that sound is evenly distributed throughout the room, regardless of where the speaker is installed. This feature is particularly valuable in spaces where the listening position is off-axis from the speaker location.

8-Inch C-CAM Bass Driver

C-CAM Technology: The C380-IDC includes an 8-inch bass driver made from Ceramic-Coated Aluminum Magnesium (C-CAM), a material renowned for its excellent rigidity and lightweight properties. These characteristics enable the driver to produce deep, accurate bass while minimizing distortion.

Robust Low-Frequency Response: The 8-inch driver ensures that the C380-IDC delivers powerful low frequencies, providing the foundation necessary for a full-bodied audio experience. Whether you’re listening to music or watching movies, the bass is punchy and well-controlled, adding depth and realism to the audio.

1-Inch C-CAM Gold Dome Tweeter

High-Frequency Clarity: The tweeter, crafted from C-CAM and featuring a gold dome, is designed to deliver pristine high frequencies. This design ensures that treble sounds are reproduced with exceptional clarity and precision, allowing you to hear the delicate details in vocals and instruments.

Pivoting Tweeter: The 1-inch tweeter, like the midrange driver, can be angled to optimize the direction of the sound. This pivoting capability is crucial for tailoring the speaker’s output to the specific acoustics of the room, ensuring that the high frequencies reach the listener with minimal loss in quality.

Rigid Surface Technology (RST)

Minimised Distortion: Monitor Audio’s Rigid Surface Technology (RST) is employed in the construction of the bass driver. The RST cone has a dimpled surface that increases its rigidity, preventing unwanted flexing or distortion when the driver is operating at high volumes. This ensures a cleaner and more accurate sound reproduction, particularly in the lower frequencies.

Enhanced Audio Precision: RST not only reduces distortion but also contributes to the overall audio precision of the speaker. The combination of RST with the C-CAM material allows the C380-IDC to deliver sound with remarkable clarity and detail across the entire frequency spectrum.

Tri-Grip Fixing System

Secure Installation: The Tri-Grip fixing system is a three-point mounting system that provides a firm and secure installation in the ceiling. This system uses three self-aligning clamps that lock the speaker securely in place, preventing movement and vibration that could degrade sound quality.

Ease of Use: Designed with both professional installers and DIY enthusiasts in mind, the Tri-Grip system makes the installation process straightforward. It ensures that the speaker sits flush with the ceiling, maintaining a clean, unobtrusive appearance.

Magnetic Grille

Aesthetic Integration: The C380-IDC comes with a sleek, low-profile magnetic grille that can be painted to match the ceiling. This ensures that the speaker blends seamlessly into the environment, making it virtually invisible once installed.

Easy Access: The magnetic grille is not only aesthetically pleasing but also functional, allowing for easy removal and reattachment. This feature makes it simple to access the speaker for maintenance or adjustments without requiring specialised tools.

Wide Frequency Response and High Sensitivity

Broad Frequency Coverage: The C380-IDC is capable of reproducing a wide frequency range, from deep bass to crisp highs. This broad frequency response ensures that every aspect of the audio, from the lowest rumble to the highest treble, is captured and delivered accurately.

High Sensitivity: With a sensitivity rating of 90 dB, the C380-IDC efficiently converts power into sound, making it capable of producing loud and clear audio even with moderate power input. This makes the speaker versatile for use in a variety of settings, from small rooms to larger spaces.
