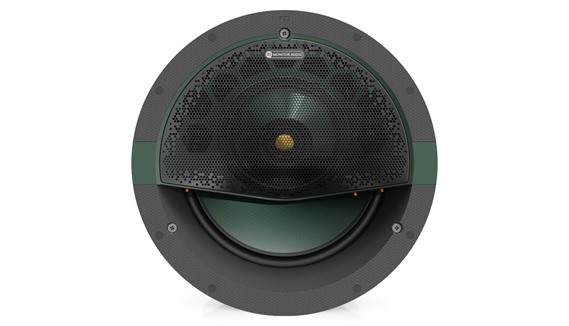

Monitor Audio C3L-A Ceiling Speaker

£950.00

The Monitor Audio C3L-A is a high-performance in-ceiling speaker from the Creator Series, designed for premium audio experiences in both home theater and commercial installations. This three-way speaker features an angled IDC II driver array, focusing sound into the listening area for enhanced clarity and intelligibility. Key components include a 9" RDT III bass driver, a 4" midrange driver, and a 1" tweeter, all housed in a design aimed at delivering a wide frequency response from 45Hz to 35kHz. The C3L-A supports easy installation with the patented Quik-Link connector and Tri-Grip II system, ensuring a secure fit.

Technical Specifications

Frequency Response: 45Hz - 35kHz
Impedance: 6 ohms
Sensitivity: 89 dB (1W@1M)
Power Handling: 60 - 225 watts

Drivers: 9-inch RDT II bass driver, 4-inch IDC II midrange driver and 1-inch IDC II tweeter

Overall Dimensions (with grille): 278 mm x 161 mm
Cut-Out Dimensions: Diameter 248 mm
Mounting Depth: 157 mm
Weight: 5.6 kg

Monitor Audio Lifetime Warranty

Applications

The Monitor Audio C3L-A is versatile and suitable for a variety of applications:

Home Theaters: The angled IDC II array and three-way design make it ideal for creating immersive surround sound experiences, providing clear dialogue and dynamic sound effects.

Multi-Room Audio Systems: The speaker’s high sensitivity and wide frequency response make it perfect for distributing high-quality audio throughout a home or commercial space.

Commercial Spaces: With its robust power handling and wide coverage, the C3L-A is suitable for use in restaurants, retail stores, conference rooms, and other commercial environments where high-quality audio is essential.

Three-Way Driver Configuration

The C3L-A is equipped with a three-way driver system, ensuring that each frequency range is handled by a dedicated driver. This configuration enhances overall sound clarity and detail, providing an immersive listening experience.

9" RDT III Bass Driver

The speaker features a 9" RDT III (Rigid Diaphragm Technology) bass driver. This driver utilises a composite construction with a C-CAM (Ceramic-Coated Aluminium/Magnesium) cone, combining lightness with rigidity to minimise distortion. The RDT III technology allows for accurate reproduction of deep bass frequencies, essential for delivering powerful low-end sound in both music and cinematic applications.

Midrange Driver

The 4" midrange driver, also using C-CAM material, is specifically designed to reproduce the critical midrange frequencies. This driver ensures clear and detailed vocals and instruments, providing a natural and balanced sound.

Gold Dome C-CAM Tweeter

The C3L-A includes a 1" gold dome C-CAM tweeter, renowned for its ability to deliver crisp and clear high frequencies. The gold dome construction not only adds durability but also enhances the tweeter's performance by providing smoother frequency response and improved damping.

Angled IDC II Driver Array

The IDC II driver array in the C3L-A is angled at 25 degrees, optimising the speaker’s performance for directional sound applications. This angled design is particularly beneficial for home theater setups where precise sound imaging and localisation are crucial. The array allows for wide dispersion and even coverage, making it ideal for use as part of an LCR (Left, Center, Right) speaker system.

Tri-Grip II Mounting System

The Tri-Grip II mounting system is designed to provide a secure and stable installation. This system uses a three-point clamping mechanism that holds the speaker firmly in place, reducing unwanted vibrations and maintaining consistent sound quality. The Tri-Grip II system also facilitates easy and precise alignment during installation, enhancing the overall user experience.

Wide Frequency Response and High Sensitivity

Frequency Response: The C3L-A boasts a wide frequency response range of 45Hz to 35kHz, allowing it to reproduce the full spectrum of audio, from deep bass to delicate high notes. This wide range ensures that all aspects of the audio signal are faithfully reproduced, enhancing the listening experience.

Sensitivity: With a sensitivity of 89 dB, the C3L-A is capable of delivering high output levels with minimal input power, making it efficient and suitable for use with a variety of amplifiers.

Impedance and Power Handling

The speaker has a nominal impedance of 6 ohms, with a minimum impedance of 4.6 ohms at 2 kHz. This makes it compatible with a wide range of amplifiers.

It can handle up to 150W RMS (Root Mean Square) power, with a recommended amplifier power range of 60W to 225W. This robust power handling capability ensures the speaker can deliver strong and dynamic audio without distortion, even at high volumes.

Quik-Link Connector

The patented Quik-Link connector simplifies the speaker wiring process, providing a quick and secure method to connect the speaker to the audio system. This feature is particularly beneficial for professional installers, ensuring reliable and efficient installations.

Design and Build Quality

The C3L-A features a sleek, low-profile design, with a paintable grille that allows it to blend seamlessly with any ceiling decor. The grille can be customised to match the surrounding environment, making the speaker unobtrusive and aesthetically pleasing.

Monitor Audio is known for its high build quality, and the C3L-A is no exception. The speaker is constructed with premium materials and components, ensuring long-term reliability and durability. The use of advanced technologies like RDT III and C-CAM ensures that the C3L-A delivers exceptional performance, making it a worthwhile investment for any audio enthusiast.

Monitor Audio Creator Series Speakers

Monitor Audio Creator Series ceiling speakers offer a range of high-quality, in-ceiling audio solutions designed for versatile applications. These speakers feature advanced C-CAM (Ceramic-Coated Aluminum/Magnesium) drivers, including mid-bass drivers and tweeters, which provide exceptional sound clarity and detail. Creator Series ceiling speakers are ideal for both residential and commercial installations.

View the full range of Creator Series speakers
