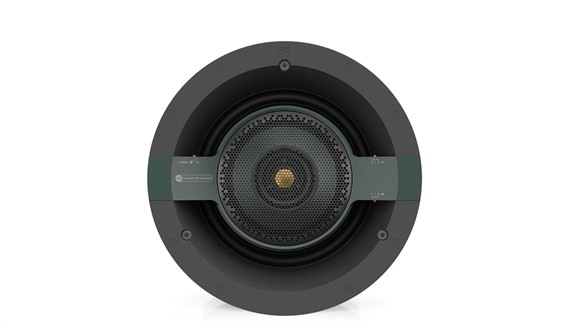

Monitor Audio C3M Ceiling Speaker

£650.00
The Monitor Audio C3M is a high-performance in-ceiling speaker from the Creator Series, designed to deliver exceptional audio quality with a three-way driver system. It features a 7" RDT III bass driver for deep bass, a 4" IDC II midrange driver for clear mids, and a 1" IDC II tweeter with a UD Waveguide II for detailed highs. The speaker offers a frequency response of 45Hz to 35kHz and handles 120W RMS power. Its innovative design includes the Quik-Link connector and Tri-Grip II mounting system for easy installation.
Technical Specifications

Frequency Response: 45Hz - 35kHz
Impedance: 6 ohms
Sensitivity: 87 dB (1W@1M)
Power Handling: 45 - 180 watts

Drivers:
7-inch RDT III bass driver, 4-inch IDC II midrange driver and 1-inch IDC II tweeter

Overall Dimensions (with grille):
242 mm x 151 mm
Cut-Out Dimensions: Diameter 212 mm
Mounting Depth: 148 mm
Weight: 3.4 kg


Monitor Audio Lifetime Warranty

Applications

The versatility and advanced design of the C3M make it suitable for a wide range of applications:

Home Theaters: Ideal for creating immersive surround sound setups, providing clear dialogue and dynamic audio effects.

Multi-Room Audio Systems: Suitable for distributing high-quality audio throughout a home or commercial environment, offering consistent sound quality in different areas.

Commercial Spaces: Perfect for use in restaurants, retail stores, conference rooms, and other environments where high-quality background or focused audio is required.
Three-Way Driver Configuration

The C3M features a sophisticated three-way driver system, ensuring that each frequency range is handled by a dedicated driver, enhancing clarity and detail across the entire audio spectrum.


7" RDT III Bass Driver

The C3M is equipped with a 7" RDT III (Rigid Diaphragm Technology) bass driver, which employs a composite sandwich construction combining C-CAM (Ceramic-Coated Aluminium/Magnesium) technology. This construction provides a perfect balance between rigidity and lightness, significantly reducing distortion and providing accurate, deep bass reproduction. The RDT III cone design helps in delivering a tighter bass response and increased linearity, crucial for reproducing low frequencies with precision.

4" IDC II Midrange Driver

The 4" midrange driver is a critical component in the C3M's audio performance, handling the essential midrange frequencies that are responsible for the clarity of vocals and instruments. The driver utilises Monitor Audio’s IDC II (Inverted Dual Concentric) technology, which integrates the midrange driver with the tweeter in a single unit. This design allows for a more cohesive sound field and seamless integration between the different frequency bands.


1" IDC II Tweeter

The C3M features a 1" gold dome C-CAM tweeter, known for its lightweight yet rigid properties. This tweeter is part of the IDC II array and is designed to deliver pristine high frequencies. The use of a gold dome enhances the tweeter's durability and performance, providing a smooth and extended high-frequency response. The tweeter is coupled with Monitor Audio’s UD Waveguide II, which helps to optimise the dispersion pattern, providing a wider soundstage and ensuring consistent sound quality across different listening positions.

Design and Aesthetics

The C3M features a low-profile design that allows it to blend seamlessly with any ceiling. The speaker comes with a paintable grille, enabling it to match the room's décor for a discreet and elegant appearance. This design consideration makes the C3M not only a high-performance audio component but also an aesthetically pleasing addition to any space.
Frequency Response and Sensitivity

Frequency Response: The C3M offers an impressive frequency response range from 45Hz to 35kHz. This wide range ensures that the speaker can accurately reproduce the entire spectrum of sound, from deep, powerful bass to delicate, high-pitched tones. Such a broad frequency response makes the C3M suitable for a wide variety of audio content, including music, movies, and more.

Sensitivity: With a sensitivity rating of 87 dB, the C3M is designed to deliver high sound pressure levels with minimal input power. This feature makes it efficient and compatible with a range of amplifiers, ensuring optimal performance even in complex audio setups.


Power Handling and Impedance

Power Handling: The C3M can handle up to 120W RMS, with a recommended amplifier power range of 45W to 180W. This robust power handling capacity allows the speaker to deliver dynamic audio output, suitable for both casual listening and high-volume scenarios.

Impedance: The speaker features a nominal impedance of 6 ohms, which is compatible with most modern amplifiers. This impedance level ensures that the speaker can be integrated into various audio systems without causing strain on the amplifier.


Quik-Link Connector

The C3M is designed with the patented Quik-Link connector, which simplifies the installation process by providing a quick and secure connection to the audio system. This feature is particularly beneficial for professional installers, ensuring that the setup process is efficient and hassle-free.

Tri-Grip II Mounting System

The Tri-Grip II mounting system is a key innovation that enhances the speaker’s installation stability. This system uses a three-point clamping mechanism that firmly secures the speaker in place, minimising vibrations and potential audio distortions. The Tri-Grip II system also allows for precise alignment during installation, ensuring optimal sound projection and performance.
Monitor Audio Creator Series Speakers

Tri-Grip II

Tri-Grip II is an advanced mounting system used in Monitor Audio's Creator Series speakers. It features a three-point fixing mechanism that provides a secure and stable attachment to ceilings or walls. This system minimises vibrations and ensures optimal sound quality. The Tri-Grip II also allows for quick and easy installation, making it user-friendly for both professional installers and DIY enthusiasts. It's designed to accommodate various architectural settings and ensure a flush, aesthetically pleasing finish.
Monitor Audio Creator Series Speakers

Quick-Link

Quick-Link is an innovative feature designed for easy and efficient speaker installation. This connector system simplifies the wiring process, allowing for quick and secure connections between the speaker and the amplifier or receiver. It is particularly beneficial in multi-speaker setups, where it significantly reduces the time and effort required for installation. The Quick-Link system is a standard feature in Monitor Audio's Creator Series, ensuring reliable and hassle-free installations across various environments.

Tier 1 Ceiling Speakers

A versatile range of small, medium and large speakers designed for cost-effective installations, prioritising product simplicity and reliable acoustic performance.

Features
Two-way arrangement
C-CAM mid-bass drivers
C-CAM tweeter with UD Waveguide I
Tri-Grip II
Quik-Link

Tier 2 Ceiling Speakers

This range of small, medium and large in-ceiling speakers retains the engineering excellence of Tier 1 while offering enhanced acoustic performance. It includes additional features like boundary correction, high-frequency cut/boost, and the dual-stereo T2X, providing greater flexibility in speaker placement.

Features
Two-way arrangement
RST II mid-bass drivers
C-CAM tweeter with UD Waveguide II
Controlled Performance
T2X-Model
Tri-Grip II
Quik-Link

Tier 3 Ceiling Speakers

This high-performance range of medium and large in-ceiling speakers builds on the engineering excellence of Tier 2, offering enhanced acoustic performance. It includes additional features for versatile speaker placement, such as boundary correction and mid/high-frequency cut/boost options, along with advanced acoustic technologies.

Features
Three-way arrangement
RDT III bass drivers
IDC II coaxial mid/tweeter drivers with UD Waveguide II
Controlled Performance
Tri-Grip II
Quik-Link

Monitor Audio Creator Series Speakers

Monitor Audio Creator Series ceiling speakers offer a range of high-quality, in-ceiling audio solutions designed for versatile applications. These speakers feature advanced C-CAM (Ceramic-Coated Aluminum/Magnesium) drivers, including mid-bass drivers and tweeters, which provide exceptional sound clarity and detail. Creator Series ceiling speakers are ideal for both residential and commercial installations.

View the full range of Creator Series speakers
