DISCONTINUED

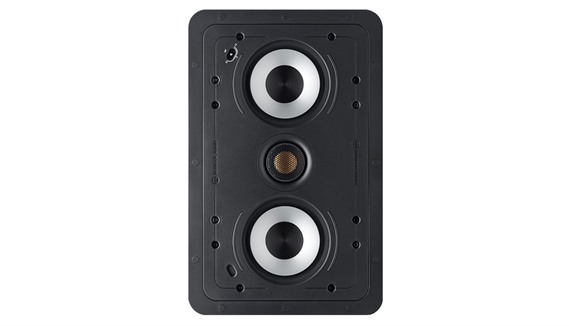

Monitor Audio CP WT140 LCR In-Wall Speaker

The Monitor Audio CP-WT140LCR is a high-performance in-wall speaker engineered to deliver superior audio quality in a discreet, space-saving design. As part of Monitor Audio's Controlled Performance range, it integrates advanced technologies to provide clear, detailed sound for home theaters or music systems. The CP-WT140LCR features a 4-inch MMP II bass driver and a 1-inch C-CAM Gold Dome tweeter, offering a balanced two-way design that ensures wide frequency response and impressive power handling. It also includes key features like Tri-Grip dog fixings for easy installation, a paintable magnetic grille for seamless integration, and a sealed backbox for consistent performance.
Technical Specifications

Frequency Response: 60Hz – 25kHz
Impedance: 6 ohms
Sensitivity: 88 dB (1W@1M)
Power Handling: 100 watts
Drivers: 2 x 4-inch MMP cone woofers, 1-inch C-CAM gold dome tweeter
Overall Dimensions: 333 mm x 217 mm
Cut-Out Dimensions: 299 mm x 183 mm
Mounting Depth: 97 mm

Performance and Application

The Monitor Audio CP-WT140LCR is engineered for high performance in a variety of settings, making it an excellent choice for both home theater and music listening applications. Its two-way design, combined with advanced driver technology, allows it to reproduce a wide range of frequencies with accuracy and clarity. This makes the CP-WT140LCR particularly well-suited for use as a front or center speaker in a home theater system, where clear dialogue and detailed sound effects are crucial for an immersive experience.

In a home theater setup, the CP-WT140LCR excels at delivering clear and detailed sound that brings movies and TV shows to life. The speaker’s wide frequency response ensures that it can handle the full range of audio content in movies, from the lowest rumbles to the highest notes. This makes it a versatile option for those looking to build a high-quality home theater system.

For music listening, the CP-WT140LCR offers a balanced and detailed sound that accurately reproduces the nuances of different genres. Whether you’re listening to classical music, rock, or jazz, the CP-WT140LCR delivers a rich and engaging sound that enhances the listening experience. Its ability to handle both low and high frequencies with equal precision ensures that every note is heard clearly, making it an ideal choice for audiophiles who demand high performance from their in-wall speakers.
Two-Way Design

The CP-WT140LCR features a two-way design, with separate drivers dedicated to handling specific frequency ranges. This configuration ensures a balanced and dynamic sound, where both high and low frequencies are reproduced accurately. This design is crucial for achieving clear dialogue in home theater applications and for delivering a full range of sound when listening to music.

4-Inch MMP II Bass Driver

At the heart of the CP-WT140LCR's low-frequency performance is its 4-inch MMP II (Metal Matrix Polymer) bass driver. The MMP II material is known for its strength and lightweight properties, allowing the driver to produce powerful, distortion-free bass. This driver ensures that the lower frequencies are delivered with impact and precision, essential for creating a rich and immersive audio experience.

1-Inch C-CAM Gold Dome Tweeter


The CP-WT140LCR's high frequencies are managed by a 1-inch C-CAM (Ceramic-Coated Aluminum/Magnesium) Gold Dome tweeter. The C-CAM tweeter is a hallmark of Monitor Audio's design, offering exceptional clarity and precision in the high-frequency range. This tweeter ensures that the upper range of the sound spectrum is crisp and clear, making vocals and instruments stand out in the mix.

Sealed Backbox

One of the standout features of the CP-WT140LCR is its integrated sealed backbox. This design element serves to protect the internal components from dust and debris while also providing consistent acoustic performance regardless of the wall cavity's size or construction. The sealed backbox ensures that the speaker delivers reliable, high-quality sound with every installation, making it a versatile choice for various environments.
Wide Frequency Response

The CP-WT140LCR offers a wide frequency response, capable of reproducing sound from 60Hz to 25kHz. This broad range allows the speaker to handle a full spectrum of audio, from deep bass notes to sparkling highs. The wide frequency response is key to the speaker's versatility, enabling it to perform well across a wide range of content, from movie soundtracks to music.

High Power Handling

With a power handling capacity of up to 100 watts, the CP-WT140LCR is designed to deliver substantial sound levels without compromising on quality. The high power handling capability ensures that the speaker can cope with dynamic audio content, providing both subtle details and powerful impact as required by the source material.

Tri-Grip Dog Fixings

Monitor Audio's Tri-Grip dog fixings make the installation of the CP-WT140LCR straightforward and secure. These fixings offer better clamping force than traditional methods, ensuring that the speaker remains firmly in place within the wall cavity. This secure mounting minimizes the risk of vibrations that could negatively affect sound quality, providing a stable platform for optimal audio performance.

Paintable Magnetic Grille


Aesthetics are an important consideration for in-wall speakers, and the CP-WT140LCR addresses this with a paintable magnetic grille. The grille can be easily painted to match the surrounding wall color, allowing the speaker to blend seamlessly into the room's decor. The magnetic attachment also makes it easy to remove and replace the grille, adding convenience during installation and maintenance.
