DISCONTINUED

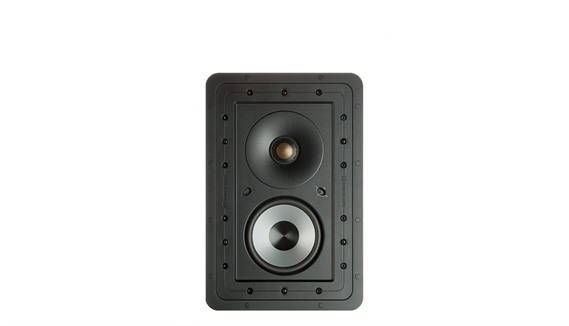

Monitor Audio CP WT150 In-Wall Speaker

The Monitor Audio CP-WT150 is a high-performance in-wall speaker that combines advanced audio technology with a discreet, easy-to-install design. Its two-way configuration, featuring a 5-inch MMP II bassmidrange driver and a 1-inch C-CAM Gold Dome tweeter, ensures that it can deliver clear, detailed sound across a wide range of audio content. With its wide frequency response, high power handling, and integrated sealed back box, the CP-WT150 is an excellent choice for those looking to build a high-quality home theater or music system. The speaker's flexible installation options and paintable magnetic grille make it easy to integrate into any room decor, providing both style and performance in a single package.
Technical Specifications

Frequency Response: 75Hz – 25kHz
Impedance: 6 ohms
Sensitivity: 85 dB (1W@1M)
Power Handling: 50 watts
Drivers: 5-inch MMP woofer, 1-inch C-CAM gold dome tweeter
Overall Dimensions: 360 mm x 242 mm
Cut-Out Dimensions: 326 mm x 207 mm
Mounting Depth: 96 mm

Performance and Application


The Monitor Audio CP-WT150 is designed for high performance in various applications, making it an excellent choice for home theater and music systems. Its two-way design and advanced driver technology ensure that it can deliver clear, detailed sound across a wide range of audio content.

In a home theater setup, the CP-WT150 excels at reproducing dialogue and sound effects with clarity and precision. The speaker's wide frequency response ensures that it can handle the full range of audio content in movies, from deep bass rumbles to high-frequency details. This makes it a versatile option for those looking to build a high-quality home theater system.

For music listening, the CP-WT150 offers a balanced and detailed sound that accurately reproduces the nuances of different genres. Whether you're listening to classical music, rock, or jazz, the CP-WT150 delivers a rich and engaging sound that enhances the listening experience. Its ability to handle both low and high frequencies with equal precision ensures that every note is heard clearly, making it an ideal choice for audiophiles who demand high performance from their in-wall speakers.
Two-Way Design

The CP-WT150 features a two-way design, with a dedicated driver for bass and midrange frequencies, and a separate tweeter for high frequencies. This configuration ensures that each part of the sound spectrum is handled by a driver specifically tuned for it, resulting in clear and balanced audio reproduction.

5-Inch MMP II Bass/Midrange Driver

At the core of the CP-WT150's performance is its 5-inch MMP II (Metal Matrix Polymer) bass/midrange driver. MMP II is a proprietary material known for its combination of rigidity and lightweight properties, enabling the driver to produce accurate, distortion-free sound. The bass/midrange driver is responsible for delivering deep, punchy bass and detailed midrange, ensuring that vocals and instruments sound natural and lifelike.

1-Inch C-CAM Gold Dome Tweeter

For high-frequency reproduction, the CP-WT150 is equipped with a 1-inch C-CAM (Ceramic-Coated Aluminum/Magnesium) Gold Dome tweeter. This tweeter is designed to deliver crystal-clear high frequencies, adding detail and sparkle to the audio output. The C-CAM tweeter's durability and precision make it ideal for handling the most delicate parts of the sound spectrum without distortion, even at high volume levels.

Wide Frequency Response


The CP-WT150 offers a frequency response of 75Hz to 25kHz, covering a wide range of audio content. This wide frequency response ensures that the speaker can reproduce both the deep bass tones and the high treble notes, making it suitable for a variety of music genres and movie soundtracks.
High Power Handling

The speaker has a power handling capacity of up to 50 watts, allowing it to deliver loud, clear sound without compromising on quality. This high power handling capability ensures that the CP-WT150 can cope with dynamic audio content, providing both subtle nuances and powerful impact when needed.

Sealed Back Box

A key feature of the CP-WT150 is its integrated sealed back box. This design not only protects the internal components from dust and debris but also ensures consistent acoustic performance. The sealed back box provides a controlled environment for the drivers, resulting in reliable sound quality regardless of the wall cavity's size or construction.

Tri-Grip Dog Fixings

Monitor Audio's Tri-Grip dog fixings make the installation process easy and secure. These fixings offer superior clamping force compared to traditional methods, ensuring that the speaker is securely mounted within the wall cavity. This secure installation minimises vibrations that could affect sound quality, providing a stable platform for optimal audio performance.

Paintable Magnetic Grille

The CP-WT150 comes with a paintable magnetic grille, allowing the speaker to blend seamlessly into any room decor. The grille can be easily painted to match the surrounding wall color, making the speaker virtually invisible once installed. The magnetic attachment makes it easy to remove and replace the grille, adding convenience during installation and maintenance.
