DISCONTINUED

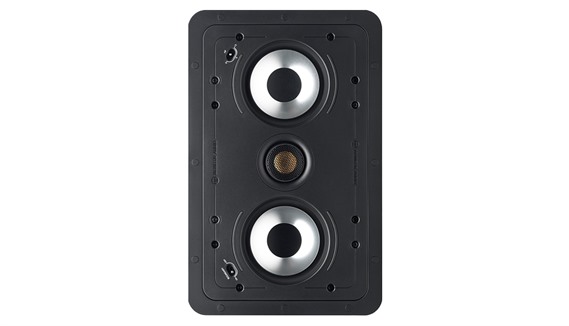

Monitor Audio CP WT240 LCR In-Wall Speaker

The Monitor Audio CP-WT240LCR is a high-performance in-wall speaker that combines advanced technology, durable construction, and aesthetic flexibility. Its three-way design, featuring dual 4-inch MMP II bass drivers, a 4-inch C-CAM midrange driver, and a 1-inch C-CAM Gold Dome tweeter, ensures that it can handle a wide range of audio content with precision and power. Whether used in a home theater or as part of a stereo system, the CP-WT240LCR delivers the clarity, detail, and impact that discerning listeners expect.
Technical Specifications

Frequency Response: 60Hz – 25kHz
Impedance: 6 ohms
Sensitivity: 88 dB (1W@1M)
Power Handling: 100 watts
Drivers: 2 x 4-inch C-CAM woofers, 1-inch C-CAM gold dome tweeter
Overall Dimensions: 333 mm x 217 mm
Cut-Out Dimensions: 299 mm x 183 mm
Mounting Depth: 97 mm

Performance and Application


The Monitor Audio CP-WT240LCR is engineered for high performance in a variety of settings, making it an excellent choice for both home theater and music listening applications. Its two-way design, combined with advanced driver technology, allows it to reproduce a wide range of frequencies with accuracy and clarity. This makes the CP-WT240LCR particularly well-suited for use as a front or center speaker in a home theater system, where clear dialogue and detailed sound effects are crucial for an immersive experience.

In a home theater setup, the CP-WT240LCR excels at delivering clear and detailed sound that brings movies and TV shows to life. The speaker’s wide frequency response ensures that it can handle the full range of audio content in movies, from the lowest rumbles to the highest notes. This makes it a versatile option for those looking to build a high-quality home theater system.

For music listening, the CP-WT240LCR offers a balanced and detailed sound that accurately reproduces the nuances of different genres. Whether you’re listening to classical music, rock, or jazz, the CP-WT240LCR delivers a rich and engaging sound that enhances the listening experience. Its ability to handle both low and high frequencies with equal precision ensures that every note is heard clearly, making it an ideal choice for audiophiles who demand high performance from their in-wall speakers.
Three-Way Design

The CP-WT240LCR is a three-way speaker, meaning it has dedicated drivers for bass, midrange, and high frequencies. This design allows the speaker to deliver a balanced and dynamic sound, with each driver optimised for its specific range. The three-way configuration ensures that all aspects of the audio spectrum are covered, resulting in a rich and immersive listening experience.

MMP II Bass Driver

This speaker features dual 4-inch MMP II (Metal Matrix Polymer) bass drivers. MMP II is a material known for its rigidity and lightweight properties, allowing the bass drivers to produce deep, controlled bass with minimal distortion. The dual drivers are responsible for delivering the low-frequency sounds, providing a solid foundation for the rest of the audio spectrum.

C-CAM Midrange Driver

The CP-WT240LCR includes a dedicated 4-inch C-CAM (Ceramic-Coated Aluminum/Magnesium) midrange driver. C-CAM is a material prized for its combination of lightness and rigidity, enabling the midrange driver to produce clear and detailed sound. The midrange is a critical part of the audio spectrum, as it covers the frequencies where most vocals and instruments reside. The C-CAM midrange driver ensures that these sounds are reproduced accurately, providing a natural and lifelike listening experience.

C-CAM Gold Dome Tweeter

For high-frequency sound, the CP-WT240LCR is equipped with a 1-inch C-CAM Gold Dome tweeter. This tweeter is known for its clarity and precision, ensuring that high frequencies are reproduced without distortion. The result is crisp and clear treble, adding sparkle and detail to the overall sound.

Sealed Back Box


One of the standout features of the CP-WT240LCR is its sealed back box design. This integrated enclosure ensures consistent performance regardless of the wall cavity's size or construction. The sealed back box protects the internal components from dust and debris while providing a controlled acoustic environment. This results in reliable, high-quality sound with every installation, making the speaker suitable for a wide range of applications.
Wide Frequency Response

The CP-WT240LCR boasts an impressive frequency response range of 60Hz to 25kHz. This wide range allows the speaker to handle a full spectrum of sound, from deep bass notes to sparkling highs. Whether you're listening to music or watching a movie, the wide frequency response ensures that every detail of the audio is reproduced accurately.

High Power Handling

With a power handling capacity of up to 100 watts, the CP-WT240LCR is designed to deliver substantial sound levels without compromising on quality. The speaker's high power handling capability ensures that it can cope with dynamic audio content, providing both subtle details and powerful impact as required by the source material.

Tri-Grip Dog Fixings


The CP-WT240LCR features Monitor Audio's Tri-Grip dog fixings, which provide superior clamping force compared to traditional methods. These fixings secure the speaker firmly within the wall cavity, minimising vibrations that could negatively affect sound quality. The Tri-Grip fixings also make installation straightforward and reliable, ensuring that the speaker remains securely in place over time.

Paintable Magnetic Grille


Aesthetics are crucial for in-wall speakers, and the CP-WT240LCR addresses this with a paintable magnetic grille. The grille can be easily painted to match the wall color, allowing the speaker to blend seamlessly into the room's decor. The magnetic attachment also makes it easy to remove and replace the grille, adding convenience during installation and maintenance.
