DISCONTINUED

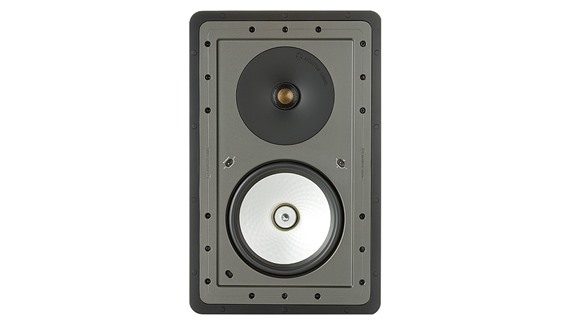

Monitor Audio CP WT380 In-Wall Speaker

The Monitor Audio CP-WT380 is a high-performance in-wall speaker that combines advanced technology, robust construction, and aesthetic flexibility to deliver exceptional audio quality in any environment. Its two-way design, featuring an 8-inch C-CAM RST bass driver and a 1-inch C-CAM Gold Dome tweeter, ensures that it can handle a wide range of audio content with precision and power. With its wide frequency response, high power handling, and integrated sealed back box, the CP-WT380 is an excellent choice for those looking to build a high-quality home theater or music system.
Technical Specifications

Frequency Response: 50Hz – 25kHz
Impedance: 6 ohms
Sensitivity: 89 dB (1W@1M)
Power Handling: 120 watts
Drivers: 8-inch C-CAM RST woofer, 1-inch C-CAM gold dome tweeter
Overall Dimensions: 472 mm x 303 mm
Cut-Out Dimensions: 438 mm x 269 mm
Mounting Depth: 99 mm

Performance and Application

The Monitor Audio CP-WT380 is designed to deliver outstanding performance in a wide range of applications. Its two-way design, combined with advanced driver technology, ensures that it can handle everything from subtle details to powerful dynamics with ease. Whether you’re looking to create an immersive home theater experience or enjoy high-fidelity music in any room, the CP-WT380 provides the clarity, depth, and power needed to bring your audio to life.

In a home theater setup, the CP-WT380 excels at reproducing dialogue, sound effects, and music with precision and clarity. The speaker's wide frequency response and high power handling ensure that it can deliver the full range of audio content, from the quietest whisper to the loudest explosion, without losing detail or distorting the sound. This makes the CP-WT380 an ideal choice for creating a cinematic experience in your own home.

For music listening, the CP-WT380 offers a balanced and detailed sound that accurately reproduces the nuances of different genres. Whether you’re listening to classical music, rock, or jazz, the CP-WT380 delivers a rich and engaging sound that enhances the listening experience. Its ability to handle both low and high frequencies with equal precision ensures that every note is heard clearly, making it an ideal choice for audiophiles who demand high performance from their in-wall speakers.
Three-Way Design

The CP-WT380 features a sophisticated two-way design, separating the sound spectrum into dedicated bass and high-frequency channels. This design ensures that each frequency range is handled by a driver optimised for that specific band, resulting in exceptionally clear and balanced sound. The separation of frequencies reduces distortion and allows each driver to perform at its best, providing a more dynamic and immersive listening experience. This design is particularly beneficial for home theater systems where clarity and detail across all frequencies are essential for an engaging experience.

8-Inch C-CAM RST Bass Driver

The speaker is equipped with an 8-inch C-CAM (Ceramic-Coated Aluminum/Magnesium) RST (Rigid Surface Technology) bass driver. C-CAM is a material renowned for its rigidity and lightness, which helps minimise distortion while providing deep, controlled bass. The RST cone further enhances the performance by using a dimpled surface to increase rigidity, allowing the driver to produce bass with greater precision and less distortion at high volumes. This technology ensures that the CP-WT380 can deliver powerful low frequencies that are both tight and accurate, adding depth and impact to music and movie soundtracks.

1-Inch C-CAM Gold Dome Tweeter

High frequencies are handled by a 1-inch C-CAM Gold Dome tweeter, a hallmark of Monitor Audio’s speaker designs. This tweeter is engineered to deliver crisp, detailed high-frequency sound without distortion, even at high volumes. The gold dome design not only enhances the durability of the tweeter but also improves its dispersion characteristics, ensuring that high frequencies are evenly distributed across the listening area. This results in a sound that is both bright and clear, adding a layer of sparkle and detail that enhances the overall listening experience.

Wide Frequency Response

The CP-WT380 boasts an impressive frequency response range of 50Hz to 25kHz. This wide range allows the speaker to reproduce both deep bass notes and the highest treble sounds with equal precision, making it versatile enough for any audio content, whether it’s a high-energy action movie or a complex piece of music. The ability to cover such a broad frequency range ensures that no detail is lost, providing a full and rich sound that captures the nuances of any audio source.

CP WT380 features

High Power Handling

With a power handling capacity of up to 120 watts, the CP-WT380 is capable of delivering loud, room-filling sound without compromising on quality. This high power handling makes the speaker ideal for larger rooms or more demanding audio applications, such as home theaters where dynamic range and volume are critical. The CP-WT380’s robust design ensures that it can handle high levels of power without distortion, maintaining clarity and detail even at high volumes.

Sealed Back Box

One of the standout features of the CP-WT380 is its integrated sealed back box. This design protects the internal components from dust and debris while providing a controlled acoustic environment that ensures consistent performance regardless of the installation conditions. The sealed back box also simplifies installation by removing the variables associated with different wall cavity sizes and constructions, ensuring that the speaker delivers the same high-quality sound in any room.

Tri-Grip Dog Fixings

Monitor Audio’s Tri-Grip dog fixings make installation of the CP-WT380 straightforward and secure. These fixings offer superior clamping force compared to traditional methods, ensuring that the speaker is firmly mounted within the wall. This secure installation minimises vibrations that could otherwise affect sound quality, providing a stable platform for optimal audio performance. The Tri-Grip system also makes the installation process quicker and easier, reducing the time and effort required to achieve a professional result.

Paintable Magnetic Grille

Aesthetic integration is a key consideration for in-wall speakers, and the CP-WT380 is designed to blend seamlessly into any environment. The speaker comes with a paintable magnetic grille, allowing it to be customised to match the wall color for a discreet, almost invisible installation. The magnetic attachment system makes it easy to remove and replace the grille, adding convenience during installation and maintenance. This ensures that the speaker can deliver exceptional audio performance without compromising the room's visual appeal.
