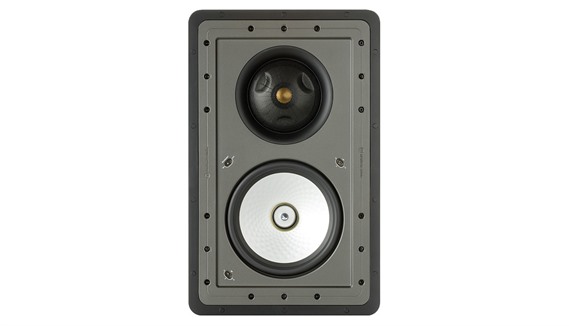

Monitor Audio CP WT380 IDC In-Wall Speaker

Technical Specifications

Frequency Response: 50Hz – 30kHz
Impedance: 6 ohms
Sensitivity: 89 dB (1W@1M)
Power Handling: 120 watts
Drivers: 8-inch C-CAM RST woofer, 4-inch C-CAM IDC mid range driver, 1-inch C-CAM gold dome tweeter
Overall Dimensions: 472 mm x 303 mm
Cut-Out Dimensions: 438 mm x 269 mm
Mounting Depth: 99 mm

Performance and Application

The Monitor Audio CP-WT380IDC is designed to excel in various applications, from high-end home theater systems to high-fidelity music listening. Its three-way design, combined with the advanced IDC module and RST bass driver, ensures that it can handle a wide range of audio content with precision and power. Whether you're watching a movie, playing video games, or listening to music, the CP-WT380IDC delivers the clarity, depth, and detail needed to create an immersive and engaging experience.

In a home theater setup, the CP-WT380IDC excels at reproducing dialogue, sound effects, and music with precision and clarity. The wide frequency response and high power handling ensure that it can deliver the full range of audio content, from subtle background sounds to explosive action sequences, without losing detail or introducing distortion. This makes the CP-WT380IDC an ideal choice for creating a cinematic experience in your own home.

For music listening, the CP-WT380IDC offers a balanced and detailed sound that accurately reproduces the nuances of different genres. Whether you're listening to classical music, rock, or jazz, the CP-WT380IDC delivers a rich and engaging sound that enhances the listening experience. The speaker's ability to handle both low and high frequencies with equal precision ensures that every note is heard clearly, making it an ideal choice for audiophiles who demand high performance from their in-wall speakers.

Three-Way Design with IDC Module

The CP-WT380IDC features a three-way design that separates sound into dedicated bass, midrange, and high-frequency channels. This configuration enhances clarity and reduces distortion across all frequency ranges. The IDC module, which includes a 4-inch midrange driver and a 1-inch C-CAM Gold Dome tweeter, is pivotal in achieving this. The IDC module's ability to pivot ensures the optimal sound direction, making it adaptable to various room layouts and listening positions.

8-Inch C-CAM RST Bass Driver

At the heart of the CP-WT380IDC's powerful bass response is the 8-inch C-CAM (Ceramic-Coated Aluminum/Magnesium) RST (Rigid Surface Technology) bass driver. The C-CAM material is known for its lightweight yet strong properties, which allow for precise bass reproduction with minimal distortion. The RST design further enhances the driver’s performance by increasing cone rigidity, leading to tighter, more accurate bass. This technology ensures that the CP-WT380IDC can deliver deep, impactful low frequencies that enhance both music and movie soundtracks.

Pivoting IDC Midrange and Tweeter

The IDC module's midrange driver and tweeter can pivot, allowing users to direct sound toward the listening area even when the speaker is installed in less-than-ideal positions. This flexibility ensures that the sound is precisely targeted, maintaining high audio fidelity regardless of where the speaker is placed. The midrange driver covers the crucial frequency range where most vocal and instrumental content resides, while the tweeter handles the high frequencies with precision, resulting in a well-rounded and detailed soundstage.

C-CAM Gold Dome Tweeter

The 1-inch C-CAM Gold Dome tweeter is a signature feature of Monitor Audio speakers, known for delivering crisp, detailed high-frequency sound. The gold coating on the dome adds rigidity, preventing distortion at high volumes and ensuring a smooth, extended high-frequency response. This tweeter is particularly adept at reproducing the delicate nuances in music and the sharp detail in movie soundtracks, adding clarity and realism to any audio experience.

Wide Frequency Response

The CP-WT380IDC offers an extensive frequency response range from 50Hz to 30kHz. This wide range allows the speaker to reproduce the full spectrum of sound with precision, from deep bass notes to the highest treble. Whether you’re watching a movie with complex sound effects or listening to a symphony, the CP-WT380IDC ensures that every detail is heard with clarity and accuracy.

High Power Handling

With a power handling capacity of up to 120 watts, the CP-WT380IDC is designed to perform in demanding audio environments. This high power capability ensures that the speaker can deliver robust, room-filling sound without distortion, making it ideal for large spaces or high-volume listening. The speaker's robust construction and advanced driver technology allow it to maintain clarity and detail even at high output levels, providing a dynamic and engaging audio experience.

Sealed Back Box Design

The CP-WT380IDC features a sealed back box, which plays a crucial role in maintaining consistent audio performance regardless of the installation environment. The back box protects the speaker's internal components from dust and debris and provides a controlled acoustic environment, ensuring that the sound remains consistent and accurate no matter where the speaker is installed. This design also simplifies installation by eliminating the variability introduced by different wall cavity sizes and constructions.

Tri-Grip Dog Fixings

Installation of the CP-WT380IDC is made straightforward and secure with Monitor Audio’s Tri-Grip dog fixings. These fixings provide superior clamping force compared to traditional mounting systems, ensuring that the speaker remains securely in place once installed. The Tri-Grip system reduces the risk of vibrations and movement that could compromise sound quality, ensuring a stable and consistent performance over time. Additionally, the fixings are designed to make the installation process quicker and easier, saving time and effort.
