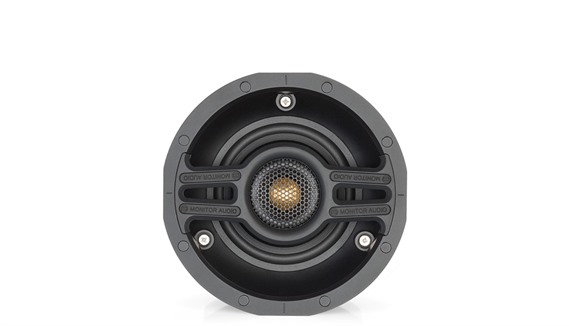

Monitor Audio CS140 Ceiling Speaker

Technical Specifications

Frequency Response: 75Hz – 30kHz
Sensitivity: 85 dB
Nominal Impedance: 6 ohms
Driver Complement: 1 x 4-inch MMP II bass driver, 1 x 1-inch C-CAM gold dome tweeter
Power Handling: 10 – 50 watts
Dimensions: Diameter 180 mm x 99 mm
Cut-Out Diameter: 149 mm
Grille: Magnetic, paintable

Applications

Small to Medium Room Audio: The CS140 is ideally suited for small to medium-sized rooms where space is at a premium. Its compact size and versatile performance make it an excellent choice for delivering high-quality sound in bedrooms, offices, and kitchens.

Discreet Surround Sound Systems: For home theater enthusiasts who require a minimalist setup, the CS140 can be used as part of a surround sound system where the speakers need to be heard but not seen. Its ability to blend into the ceiling makes it a great option for rear or side channels.

Commercial Spaces: The CS140’s slim design and robust performance also make it suitable for commercial environments such as restaurants, hotels, and retail spaces, where high-quality audio is needed without compromising on aesthetics.

Compact, Slim Profile Design

Space-Saving Installation: The CS140 is designed with a slim profile that allows it to be installed in tight spaces where traditional speakers might not fit. With a mounting depth of just 99 mm, this speaker is ideal for installations in areas with limited ceiling space, such as modern homes with shallow cavities.

Discreet Aesthetic: The speaker’s flush-mount design ensures it blends seamlessly into the ceiling, maintaining the room’s clean lines and décor. This discreet appearance is further enhanced by a paintable magnetic grille, which can be customised to match the ceiling color for an even more subtle integration.

4-Inch MMP II Bass Driver

Rich, Detailed Sound: The CS140 features a 4-inch MMP II (Metal Matrix Polymer) bass driver. MMP II technology involves using a lightweight polymer cone with a metal coating, which provides the rigidity needed for high-performance audio without adding unnecessary weight. This results in a driver capable of delivering detailed and accurate midrange and bass frequencies.

Efficient Bass Reproduction: Despite its compact size, the 4-inch driver is designed to move air efficiently, providing powerful and controlled bass that enhances the overall listening experience. This makes the CS140 suitable for reproducing music and movie soundtracks with depth and clarity.

1-Inch C-CAM Gold Dome Tweeter

Clear High-Frequency Performance: The CS140 is equipped with a 1-inch C-CAM (Ceramic-Coated Aluminum Magnesium) gold dome tweeter, a hallmark of Monitor Audio’s high-end speaker designs. The tweeter is engineered to deliver clear, detailed high frequencies with minimal distortion, ensuring that vocals, instruments, and ambient effects are reproduced with precision.

Wide Dispersion of Sound: The C-CAM tweeter is positioned to ensure a wide dispersion of high frequencies, allowing the CS140 to fill the room with sound evenly. This makes it ideal for multi-room audio systems where consistent sound coverage is essential.

Optimised for In-Ceiling Installation

Ease of Installation: The CS140 is designed for straightforward installation. Its compact size and lightweight construction make it easy to handle, while the Tri-Grip fixing system ensures a secure and stable fit in the ceiling. This three-point fixing mechanism spreads the load evenly, reducing the risk of ceiling damage and ensuring a solid installation.

Magnetic Grille for Easy Access: The speaker comes with a magnetic grille that is not only paintable but also easy to remove and reattach. This allows for quick access to the speaker for any maintenance or adjustments without the need for tools.

Versatile Audio Applications

Home Theater Use: The CS140 is an excellent choice for use as part of a home theater system. Its compact size allows it to be installed in ceilings where larger speakers may not be suitable, while its high-quality components ensure that it can deliver the clarity and detail needed for cinematic soundtracks.

Multi-Room Audio Systems: The speaker’s wide dispersion and discreet design make it ideal for multi-room audio setups. Whether used in kitchens, bathrooms, or living spaces, the CS140 ensures consistent sound quality throughout the home without dominating the room’s aesthetic.
