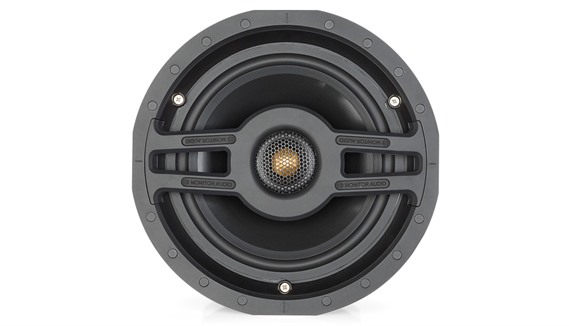

Monitor Audio CS180 Ceiling Speaker

Technical Specifications

Frequency Response: 48Hz – 30kHz
Sensitivity: 90 dB
Nominal Impedance: 6 ohms
Driver Complement: 1 x 8-inch MMP II bass driver, 1 x 1-inch C-CAM gold dome tweeter
Power Handling: 30 – 120 watts
Dimensions: Diameter 252 mm x 99 mm
Cut-Out Diameter: 213 mm
Grille: Magnetic, paintable

Applications

Residential Audio Systems: The CS180 is designed to meet the needs of modern residential audio systems. Whether you're building a new home theater or upgrading your existing setup, the CS180 delivers the sound quality and installation flexibility you need.

Commercial Audio Installations: For commercial spaces where both aesthetics and audio performance are important, the CS180 provides a discreet yet powerful solution. Its slim profile and easy installation make it a practical choice for a wide range of commercial applications.

Custom Installations: The CS180 is also suitable for custom audio installations, offering the versatility needed to meet the demands of unique spaces. Its combination of advanced driver technology and discreet design makes it a valuable addition to any custom audio project.

Slim Profile and Discreet Design

Space-Saving Installation: The CS180 is designed with a slim profile that allows for installation in areas where space is limited. With a mounting depth of just 99 mm, it can be easily fitted into ceilings with shallow cavities. This makes it perfect for modern homes and commercial spaces where the design aesthetics demand minimal intrusion.

Seamless Integration: The speaker's low-profile design is complemented by a magnetic, paintable grille. This allows the CS180 to blend seamlessly into any ceiling, ensuring that it remains unobtrusive and visually discreet. The grille can be painted to match the ceiling color, further enhancing its ability to disappear into the background.

8-Inch MMP II Bass Driver

Dynamic and Powerful Sound: At the heart of the CS180 is an 8-inch MMP II (Metal Matrix Polymer) bass driver. MMP II technology involves a polymer cone that is coated with a layer of metal, creating a driver that is both lightweight and rigid. This combination allows the CS180 to produce powerful and dynamic bass frequencies without distortion, providing a solid foundation for all types of audio content.

Detailed Midrange Reproduction: In addition to delivering strong bass, the 8-inch driver is also adept at reproducing clear and detailed midrange frequencies. This ensures that vocals, instruments, and other midrange elements are rendered with accuracy and clarity, making the CS180 suitable for both music and movie soundtracks.

1-Inch C-CAM Gold Dome Tweeter

Crystal-Clear High Frequencies: The CS180 is equipped with a 1-inch C-CAM (Ceramic-Coated Aluminum Magnesium) gold dome tweeter, a technology that is synonymous with Monitor Audio's high-end speaker designs. This tweeter is engineered to deliver crisp and clear high frequencies, ensuring that every detail of the audio is heard with precision.

Wide Sound Dispersion: The C-CAM tweeter is designed to provide a wide dispersion of sound, filling the room with consistent audio coverage. This makes the CS180 ideal for multi-room audio systems, where even sound distribution is crucial for an immersive listening experience.

Tri-Grip Fixing System

Secure and Easy Installation: Installing the CS180 is a straightforward process thanks to the Tri-Grip fixing system. This three-point fixing mechanism ensures that the speaker is securely anchored in the ceiling, reducing the risk of movement or vibration over time. The Tri-Grip system also spreads the load evenly across the ceiling surface, minimising the potential for ceiling damage during installation.

Tool-Free Maintenance: The magnetic grille on the CS180 is easy to remove and reattach, allowing for quick access to the speaker if maintenance or adjustments are needed. This tool-free design makes the CS180 a practical choice for both professional installers and DIY enthusiasts.

Versatile Applications

Home Theater Use: The CS180 is an excellent choice for enhancing home theater systems. Its powerful bass driver and high-quality tweeter ensure that it can handle the demands of movie soundtracks, providing a cinematic audio experience that immerses you in the action. The speaker's discreet design means that it can be installed in the ceiling without detracting from the room's aesthetics.

Multi-Room Audio Systems: With its wide dispersion and clear sound reproduction, the CS180 is ideal for use in multi-room audio systems. Whether you're listening to music in the kitchen, living room, or bathroom, the CS180 ensures that you get consistent sound quality throughout your home.

Commercial Spaces: The CS180's combination of slim design and high-performance audio makes it suitable for commercial environments such as restaurants, hotels, and retail spaces. It provides the high-quality sound needed for a pleasant customer experience without compromising on the interior design.
