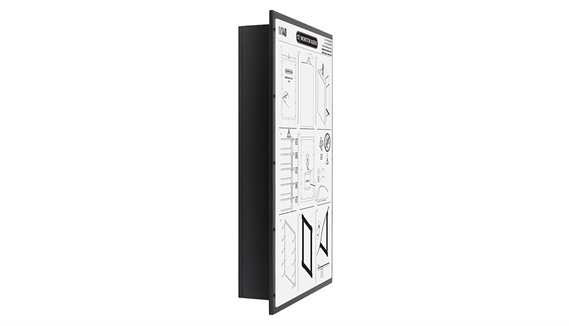

Monitor Audio IV140 Invisible Speaker

£599.00

The Monitor Audio IV140 has been designed from the ground up to meet the needs and demands of those wanting a truly concealed audio experience. Perfectly suited for use in home cinema and multi room audio applications and for use in restaurants, retail shops and commercial premises where design aesthetic is of high importance. Concealed in walls or ceilings, the IV140 speaker fits into all conventional 4 inch stud bays leaving enough room for cabling. Once installed and skimmed with plaster, the speaker is completely out of sight. A large low-frequency transducer and two high frequency transducers provide punchy high power bass and sound vibration. This two-way transducer design also features an integrated crossover to generate a wider frequency range and deliver crystal clear sound quality with smoother overall balance and character.

Technical Specifications

Frequency Response: 75Hz – 18kHz (Sealed)
Impedance: 8 ohms
Sensitivity: 82 dB (1W@1M)
Power Handling: 120 watts
Drivers: 1 x Low-Frequency transducer, 2 x High-Frequency transducer
Overall Dimensions: 642 mm x 401 mm
Cut-Out Dimensions: 591 mm x 350 mm
Mounting Depth: 95 mm

Performance and Application

The Monitor Audio IV140 is designed to excel in a wide range of applications, from home theaters to commercial installations. Its combination of advanced transducer technology, wide frequency response, and high sensitivity ensures that it can deliver exceptional audio quality in any setting.

In commercial settings, the IV140 is well-suited to a variety of applications, from retail environments to offices and conference rooms. Its concealed design allows it to blend into the background, while its robust performance ensures that speech and music are clearly heard. The speaker’s integrated back box and easy installation make it a practical choice for large-scale installations where consistency and reliability are key.

Ultra-Thin Design

The IV140 features an ultra-thin design that allows it to be installed directly into walls or ceilings, with a depth of just 95mm. This slim profile makes it ideal for installations where space is limited or where aesthetic considerations are paramount. Despite its compact form, the IV140 does not compromise on sound quality, delivering powerful and detailed audio that rivals larger, more conspicuous speaker systems.

Advanced Transducer Technology

At the core of the IV140’s impressive performance is its advanced transducer technology. The result is clear, natural audio with excellent detail and dynamics across the entire frequency range.

Wide Frequency Response

The IV140 offers a wide frequency response from 75Hz to 18kHz, ensuring that it can reproduce the full spectrum of sound with precision. Whether you are listening to music, watching movies, or using the speaker in a commercial setting, the IV140’s ability to handle both high and low frequencies with equal ease ensures a balanced and immersive audio experience.

Sensitivity and Power Handling

With a sensitivity of 82 dB and a power handling capability of 120 watts, the IV140 is designed to deliver loud, room-filling sound without requiring a large amplifier. This high sensitivity ensures that the speaker can produce powerful audio even at lower volume levels, while the robust power handling allows it to maintain clarity and detail at higher volumes.

Integrated Back Box

The IV140 comes with an integrated back box, which provides a controlled acoustic environment for the speaker’s drivers. This design feature not only protects the internal components from dust and debris but also ensures consistent audio performance regardless of the installation conditions. The back box also simplifies installation by eliminating the need to account for variations in wall cavity size or construction.

Easy Installation

Installation of the IV140 is straightforward, thanks to its user-friendly design. The speaker features a quick-fit, low-profile mounting system that allows it to be securely installed in walls or ceilings with minimal effort. This system is particularly useful for installations in tight spaces or areas where traditional speaker systems would be difficult to accommodate.

Multi-room audio

A multi-room audio system integrates seamlessly into your home, allowing you to access and stream millions of songs in high-resolution to one room or every room. Listen to your favourite playlist in the lounge while the kids listen to theirs in the snug, all accessible and controlled via your mobile device, touch screen or TV.
