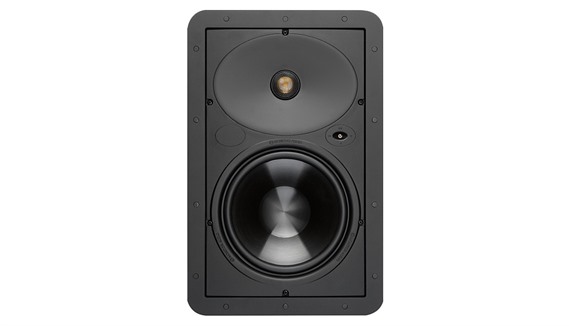

Monitor Audio W180

The W180 in wall speaker incorporates proprietary technologies and materials found in Monitor Audio's award-winning Bronze and Radius in-room loudspeakers. The W180 features a 2-way design that combines an advanced MMP II bass driver with Monitor Audio’s trademark C-CAM gold dome tweeter to provide high-performance sound, ease of drive, and wide frequency response and dispersion. Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3dB / 0dB /-3dB) level adjustment.

The Monitor Audio W180 is a brilliant in wall speaker which is easy to install and has a clear, dynamic performance. As part of the 100 Series of architectural speakers, it offers the biggest bass driver size of any speaker in its class, providing a convincing full-range sound in a wide range of locations.

Lifetime Warranty

Use the W180 for...

Multi room audio
Use the Monitor Audio W180 in-wall speaker with multi room audio systems such as Bluesound and Control4.

Home cinema

Use for front left and right channels in home cinema applications.


Best suited to medium and larger size rooms.

W180 specification

Sensitivity - 90dB 1W/1m
Power recommendations - 120 Watts
Impedance - 6 Ohms
Frequency range - 50Hz - 25kHz
Cut-out - 387mm x 234mm
Mounting depth - 93mm
Overall size - 441mm x 288mm

8 inch MMP II woofer
1 inch C-CAM pivoting gold dome tweeter

W180 features

Lifetime warranty
2-way design with pivoting C-CAM tweeter
High frequency level adjustment (+/-3dB)
Match with Monitor Audio Bronze and Radius Series speakers
Easy to install tri-grip fixing system
Aluminium alloy grille for rust-free performance
Paintable surface
Fire retardant to UL-94 VO rating
Splash and humidity proof
Dust protection cover
