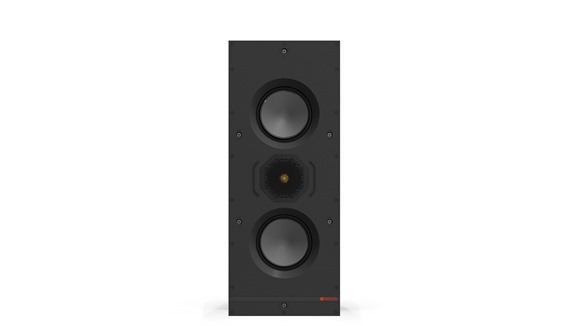

Monitor Audio W1M In-Wall Speaker

£400.00

The Monitor Audio W1M is a sophisticated in-wall speaker from the Creator Series, designed for exceptional acoustic performance and seamless integration into any space. This medium-sized, two-way speaker features dual 5" C-CAM mid-bass drivers and a 1" C-CAM tweeter with a UD Waveguide I, ensuring clear, lifelike sound across a wide frequency range of 40Hz to 30kHz. The speaker's robust power handling and versatile design make it an ideal choice for a variety of audio setups, whether in a home theater or a commercial environment. The W1M exemplifies Monitor Audio's commitment to delivering high-quality sound and innovative design.

Technical Specifications

Frequency Response: 40Hz - 30kHz
Impedance: 6 ohms
Sensitivity: 87 dB (1W@1M)
Power Handling: 30 - 110 watts

Drivers: 2 x 5-inch C-CAM mid-bass drivers and 1-inch C-CAM tweeter

Overall Dimensions (with grille): 560 mm x 231 mm
Cut-Out Dimensions: 527 mm x 198 mm
Mounting Depth: 85 mm
Weight: 3.4 kg

Monitor Audio Lifetime Warranty

Applications

The Monitor Audio W1M is versatile and can be used in various settings:

Home Theaters: Its high-performance drivers and wide frequency response make it ideal for surround sound setups, where clarity and detail are crucial.

Multi-Room Audio Systems: The W1M can deliver consistent, high-quality sound throughout a home or commercial space, providing an immersive audio experience in different rooms.

Commercial Environments: Whether in retail stores, restaurants, or conference rooms, the W1M provides high-fidelity sound that enhances the ambiance and audio experience.

Dual 5" C-CAM Mid-Bass Drivers

The W1M features two 5" mid-bass drivers crafted from C-CAM (Ceramic-Coated Aluminium/Magnesium), a material renowned for its rigidity and low mass. This construction provides the drivers with excellent damping properties, significantly reducing distortion and ensuring precise audio reproduction.

The C-CAM technology allows these drivers to deliver robust and well-defined bass, along with clear and natural midrange frequencies. This precision is critical for rendering vocals and instruments with high fidelity, making the W1M ideal for detailed audio playback.

C-CAM Tweeter with UD Waveguide I

The 1" C-CAM tweeter in the W1M is designed to handle high frequencies with exceptional clarity and smoothness. The tweeter's dome is coated with a thin layer of ceramic, enhancing its strength and performance. The inclusion of the UD Waveguide I (Uniform Dispersion Waveguide) is a standout feature, as it optimises the dispersion pattern of high frequencies.

This technology ensures that the high frequencies are spread evenly across a wide listening area, resulting in a broad and immersive soundstage. The waveguide also minimises diffraction and phase issues, providing a more accurate and detailed high-frequency response.

Acoustic Performance

Frequency Response: The W1M has an impressive frequency response range from 40Hz to 30kHz, allowing it to reproduce the full spectrum of sound, from deep, powerful bass to sparkling high frequencies. This wide range ensures that all audio content, whether music or movie soundtracks, is reproduced faithfully and with high clarity.

Sensitivity: With a sensitivity rating of 87 dB, the W1M is efficient in converting power into sound. This efficiency means that the speaker can produce high sound pressure levels with relatively low power input, making it compatible with a wide range of amplifiers.

Power Handling and Impedance

Power Handling: The W1M can handle up to 75W RMS power, with a recommended amplifier power range of 30W to 110W. This capability ensures that the speaker can deliver dynamic sound levels, suitable for both background music and more demanding audio playback scenarios.

Impedance: The nominal impedance of the W1M is 6 ohms, with a minimum impedance of 4.8 ohms at 15 kHz. This specification makes the speaker compatible with most modern amplifiers, allowing for easy integration into existing audio systems.

Quik-Link Connector

The W1M features the Quik-Link connector, a patented innovation by Monitor Audio that simplifies the installation process. This connector allows for quick and secure connections to the speaker, reducing installation time and complexity. This feature is particularly beneficial for professional installers who need reliable and efficient solutions.

Tri-Grip II Mounting System

The Tri-Grip II mounting system is designed to provide a secure and stable installation. This system uses a three-point clamping mechanism that holds the speaker firmly in place within the wall cavity, minimising vibrations that could lead to audio distortions. The Tri-Grip II system not only ensures a tight fit but also simplifies the alignment process during installation, making it easier to achieve optimal placement and acoustic performance.

Tri-Grip II

Tri-Grip II is an advanced mounting system used in Monitor Audio's Creator Series speakers. It features a three-point fixing mechanism that provides a secure and stable attachment to ceilings or walls. This system minimises vibrations and ensures optimal sound quality. The Tri-Grip II also allows for quick and easy installation, making it user-friendly for both professional installers and DIY enthusiasts. It's designed to accommodate various architectural settings and ensure a flush, aesthetically pleasing finish.

Quick-Link

Quick-Link is an innovative feature designed for easy and efficient speaker installation. This connector system simplifies the wiring process, allowing for quick and secure connections between the speaker and the amplifier or receiver. It is particularly beneficial in multi-speaker setups, where it significantly reduces the time and effort required for installation. The Quick-Link system is a standard feature in Monitor Audio's Creator Series, ensuring reliable and hassle-free installations across various environments.

Tier 1 In-Wall Speakers

A versatile range of medium in-wall speakers designed for installations that require cost-effectiveness, simplicity, and solid acoustic performance.

Features
Two-way arrangement
C-CAM mid-bass drivers
C-CAM tweeter with UD Waveguide I
Tri-Grip II
Quik-Link

Tier 2 In-Wall Speakers

This range of medium in-wall speakers maintains the engineering quality of Tier 1 while offering enhanced acoustic performance. It includes additional features like boundary correction and high-frequency cut/boost, providing greater flexibility in speaker placement.

Features
Three-way arrangement
RST II bass drivers
RST II mid-range driver
C-CAM tweeter with UD Waveguide II
Rotating mid-pod
Tri-Grip II
Quik-Link
Controlled Performance model

Tier 3 In-Wall Speakers

High-performance in-wall speakers that have all the engineering qualities of Tier 2, yet offer improved acoustic performance including an MPD II transducer, and further features for enhanced speaker placement freedom, such as boundary correction and mid/high-frequency cut/boost, plus leading-edge acoustic technologies.

Features
Three-way arrangement
RDT III bass drivers
MPD II Transducer
Rotating mid-pod
Tri-Grip II
Quik-Link
MDF back-boxes available

Monitor Audio Creator Series Speakers

Monitor Audio Creator Series In-Wall Speakers are designed for high-performance, discreet audio integration into any living or commercial space. The series includes various models, each featuring advanced technologies such as C-CAM drivers and IDC technology for exceptional clarity and dynamic range. These speakers are ideal for both stereo and surround sound applications and are perfect for delivering high-fidelity audio in home theaters, multi-room systems, and commercial environments.
