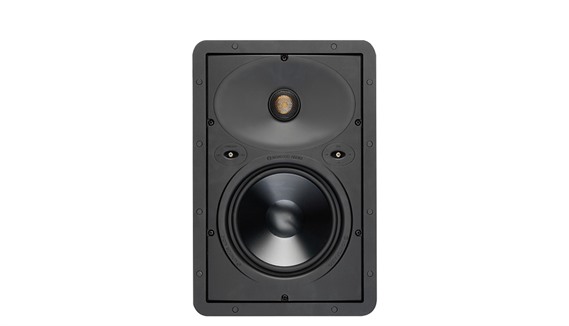

Monitor Audio W265 In-Wall Speaker

Technical Specifications

Frequency Response: 55Hz – 30kHz
Impedance: 6 Ohms
Sensitivity: 88.5 dB
Power Handling: 20 – 65 W
Driver Complement: 6.5" C-CAM bass driver, 1" C-CAM gold dome tweeter
Dimensions: Diameter 370 mm x 250 mm
Cut Out: 332 mm x 213 mm

Performance and Application

The Monitor Audio W265 is engineered to deliver outstanding audio performance in a variety of settings. Its two-way design, combined with advanced driver technology, allows the speaker to reproduce a wide range of frequencies with accuracy and clarity. This makes it an excellent choice for both music and movie lovers who demand high-quality sound from their in-wall speakers.

In a home theater setup, the W265 excels at delivering clear dialogue, detailed sound effects, and impactful bass, all of which contribute to an immersive viewing experience. The speaker’s ability to handle high power levels ensures that it can cope with the demands of dynamic movie soundtracks, providing both subtle nuances and powerful impact when needed.

For music listening, the W265 offers a balanced and detailed sound that accurately reproduces the nuances of different genres. Whether you’re listening to classical music, rock, or jazz, the W265 delivers a rich and engaging sound that brings out the best in your favorite tracks.

Paintable Magnetic Grille

To blend seamlessly with any room decor, the W265 comes with a paintable magnetic grille. This grille can be easily painted to match the wall color, allowing the speaker to remain unobtrusive while still delivering high-quality sound. The magnetic attachment makes it easy to remove and replace the grille, offering convenience during installation and maintenance.

Two-Way Design

The W265 utilises a two-way design, featuring a 1-inch C-CAM Gold Dome tweeter and a 6.5-inch MMP II cone bass/midrange driver. This configuration ensures a balanced and dynamic sound, with each driver optimised for its specific frequency range. The two-way design is ideal for delivering clear, detailed audio across the spectrum, making it suitable for both music and movie soundtracks.

1-Inch C-CAM Gold Dome Tweeter

The 1-inch C-CAM (Ceramic-Coated Aluminum/Magnesium) Gold Dome tweeter is a signature feature of Monitor Audio speakers, known for its exceptional clarity and precision in the high-frequency range. The C-CAM material is lightweight and rigid, allowing the tweeter to produce accurate high-frequency sounds with minimal distortion. The tweeter’s pivoting design adds flexibility, enabling users to direct the sound towards the optimal listening area, ensuring a more immersive audio experience.

6.5-Inch MMP II Bass/Midrange Driver

The W265 features a 6.5-inch MMP II (Metal Matrix Polymer) cone driver, responsible for the bass and midrange frequencies. The MMP II material is designed for strength and lightness, ensuring that the driver can produce deep, powerful bass and clear midrange tones. This driver is crucial for delivering the full-bodied sound that enhances both music and movie soundtracks, providing a rich audio experience.

High Power Handling

With a power handling capacity of up to 100 watts, the W265 is built to deliver high sound levels without compromising on quality. This makes the speaker suitable for a variety of audio systems, from high-end home theaters to distributed audio setups. The high power handling ensures that the speaker can handle dynamic audio content, providing both subtle details and powerful impact.

Wide Frequency Response

The W265 offers an impressive frequency response range of 55Hz to 30kHz, covering the full spectrum of audible sound. This wide range allows the speaker to reproduce deep bass notes, clear midrange tones, and crisp high frequencies with equal precision. The result is a well-rounded sound that is both detailed and dynamic, making the W265 a versatile choice for various types of audio content.

Tri-Grip Dog Fixings

Installation is made easy with Monitor Audio’s Tri-Grip dog fixings, which provide a secure and stable mount within the wall cavity. These fixings offer better clamping force compared to traditional methods, reducing the risk of vibrations that can negatively affect sound quality. The Tri-Grip system ensures that the speaker remains firmly in place, maintaining its performance over time.

Versatile Mounting Options

The W265 is designed for versatile installation, capable of being mounted in various locations throughout the home. Whether used in a home theater system, a multi-room audio setup, or as part of a stereo pair, the W265 provides consistent sound quality and aesthetic appeal. Its in-wall design makes it an excellent choice for those looking to save space while still enjoying high-performance audio.

Durable Construction

Constructed from high-quality materials, the W265 is built to last. The use of mineral-filled ABS for the speaker’s frame provides a robust housing that minimises unwanted vibrations and resonance. This durable construction ensures that the W265 will continue to deliver exceptional sound quality over the years, even in demanding environments.
