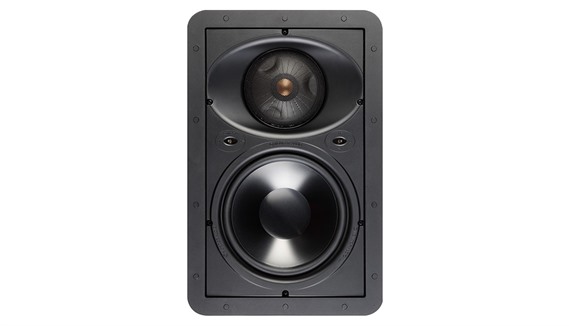

Monitor Audio W280 IDC In-Wall Speaker

Technical Specifications

Frequency Response: 45Hz – 30kHz
Impedance: 6 Ohms
Sensitivity: 90 dB
Power Handling: 30 – 120 W
Driver Complement: 8" C-CAM bass driver, 4" C-CAM RST inverted mid range driver, 1" C-CAM gold dome tweeter
Dimensions: Diameter 441 mm x 288 mm
Cut Out: 387 mm x 234 mm

Performance and Application

The Monitor Audio W280-IDC is designed to deliver exceptional audio performance across a variety of settings, making it ideal for both home theater and high-end audio installations. Its three-way design, featuring the innovative IDC module, allows the speaker to produce a wide, immersive soundstage with pinpoint accuracy. This makes the W280-IDC particularly well-suited for use as a front, center, or surround speaker in a home theater system, where precise sound imaging is critical for creating a truly immersive experience.

In a home theater setup, the W280-IDC excels at delivering clear dialogue, detailed sound effects, and impactful bass, all of which contribute to a captivating viewing experience. The speaker's ability to handle high power levels ensures that it can cope with the demands of dynamic movie soundtracks, providing both subtle nuances and powerful impact.

For music listening, the W280-IDC offers a balanced and detailed sound that brings out the nuances in all genres of music. The dedicated midrange driver ensures that vocals and instruments are reproduced with clarity and warmth, while the tweeter and bass driver work together to deliver a full-spectrum sound that is both engaging and true to the original recording.

Three-Way Design with IDC Module

The W280-IDC stands out with its three-way design, incorporating Monitor Audio's proprietary Inverted Dual Concentric (IDC) midrange/tweeter module. This unique configuration includes a 1-inch C-CAM Gold Dome tweeter, a 4-inch C-CAM midrange driver, and an 8-inch MMP II bass driver. The IDC module allows the midrange driver and tweeter to pivot, ensuring precise sound directionality and enhancing sound imaging, crucial for an immersive listening experience. This design delivers exceptional audio clarity across the entire frequency spectrum.

8-Inch MMP II Bass Driver

The W280-IDC's low-frequency response is powered by an 8-inch MMP II (Metal Matrix Polymer) bass driver. MMP II is a material renowned for its strength and lightweight properties, allowing the bass driver to produce deep, controlled, and distortion-free bass tones. This powerful driver handles the low frequencies with authority, contributing to the speaker’s ability to deliver a full-bodied, dynamic sound that enhances both music and movie soundtracks.

1-Inch C-CAM Gold Dome Tweeter

The speaker’s high-frequency response is delivered by a 1-inch C-CAM (Ceramic-Coated Aluminum/Magnesium) Gold Dome tweeter. This tweeter is known for its remarkable accuracy and clarity, ensuring that high-frequency sounds are reproduced without distortion, even at high volume levels. The C-CAM tweeter's durability and performance make it ideal for delivering crisp, clear highs that add sparkle and detail to the overall sound.

4-Inch C-CAM Midrange Driver

Complementing the tweeter and bass driver, the W280-IDC features a 4-inch C-CAM midrange driver, also part of the IDC module. This driver is dedicated to handling the critical midrange frequencies, where much of the detail and clarity in music and dialogue reside. The C-CAM midrange driver delivers smooth, natural-sounding mids, ensuring that vocals and instruments are reproduced with lifelike accuracy.

High-Frequency Level Adjustment

To further tailor the listening experience, the W280-IDC includes a high-frequency level adjustment control. This feature allows users to fine-tune the tweeter output to match the acoustics of the room or personal sound preferences. This adjustment ensures optimal performance in any environment, whether you need to boost or attenuate the high frequencies.

Tri-Grip Dog Fixings

Installation of the W280-IDC is made straightforward and secure with Monitor Audio’s Tri-Grip dog fixings. These fixings provide superior clamping force, securely anchoring the speaker within the wall cavity. The design of the Tri-Grip fixings ensures a stable, vibration-free installation, which is essential for maintaining sound quality and longevity.

Paintable Magnetic Grille

Aesthetics are crucial for in-wall speakers, and the W280-IDC addresses this with a paintable magnetic grille. This grille can be easily painted to match the wall color, allowing the speaker to blend seamlessly into any room decor. The magnetic attachment also makes it easy to remove and replace the grille, providing convenience during installation and maintenance.

Wide Frequency Response

The W280-IDC offers an extensive frequency response range of 45Hz to 30kHz, covering the full spectrum of audible sound. This broad range ensures that the speaker can reproduce deep bass, clear midrange, and crisp high frequencies with equal precision, making it versatile enough to handle a wide variety of audio content.

Durable Construction

Built to last, the W280-IDC features a robust construction with a mineral-filled ABS frame. This sturdy build minimises unwanted vibrations and resonance, protecting the internal components and ensuring consistent performance over time. The speaker's high-quality materials underscore Monitor Audio’s commitment to durability and reliability.
