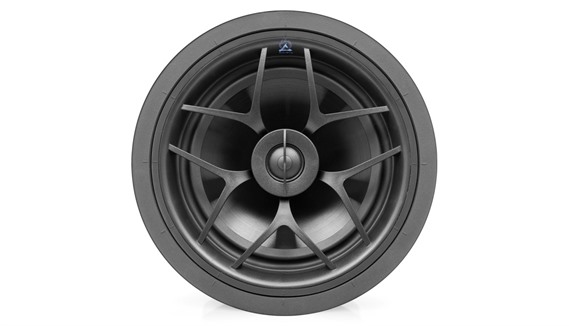

Origin Acoustics Director D83 Ceiling Speaker

£465.00
The Origin Acoustics Director D83 is an in-ceiling loudspeaker that blends advanced audio technology with a sleek design. It features an 8-inch Injection-Molded Graphite (IMG) woofer and a 1-inch aluminum dome tweeter with pivoting capabilities, enabling precise sound direction. The D83 employs X-Wave™ surround technology to minimise distortion and enhance audio clarity. Its tool-less mounting system allows for easy installation, while the magnetic, paintable grille provides a seamless finish. With a frequency response of 38Hz-20kHz, 91dB sensitivity, and 6-ohm impedance, it offers exceptional performance for both music and movies.
Technical Specifications

Frequency Response: 38Hz - 20kHz
Impedance: 6 ohms
Sensitivity: 91 dB (1W@1M)
Power Handling: 40 - 150 watts
Drivers: 8-inch IMG mid-bass driver and 1-inch aluminum tweeter
Overall Dimensions (with grille): 254 mm x 134 mm
Cut-Out Dimensions: Diameter 222 mm
Mounting Depth: 105 mm


Applications

The Director D83 is designed for versatility, making it suitable for a wide range of applications and environments.

Home Theater: The D83's high-fidelity audio performance and deep bass response make it an excellent choice for home theater systems, delivering immersive soundtracks and clear dialogue.

Multi-Room Audio: Its discreet design and robust audio capabilities make the D83 ideal for multi-room audio systems, ensuring consistent sound quality throughout different areas of a home or commercial space.

Commercial Installations: The speaker's durability and high-quality sound make it suitable for commercial installations, such as in restaurants, retail stores, and offices, where both aesthetics and audio performance are critical.
Driver Configuration

The Director D83 employs a two-way driver system, meticulously crafted to ensure high fidelity and clarity across a broad frequency range.

Injection-Molded Graphite (IMG) Woofer

Material and Performance: The 8-inch woofer is made from Injection-Molded Graphite (IMG), a material selected for its strength and light weight. This composition allows the woofer to deliver deep, precise bass and a smooth midrange response. The IMG construction also minimises distortion, ensuring that low-frequency sounds are accurate and impactful without unwanted resonance.

Enhanced Low-End Response:
The size and design of the woofer enable it to handle lower frequencies efficiently, providing a richer and fuller bass experience. This makes the D83 suitable for dynamic audio playback, including music genres that demand robust bass output and home theater applications where deep, rumbling effects are crucial.


Pivoting Aluminum Dome Tweeter

DPSD™ Technology: The 1-inch tweeter utilises Dual Plane Stabilised Diaphragm (DPSD™) technology, which stabilises the tweeter's diaphragm, allowing for higher output and lower distortion. This technology ensures that high-frequency sounds are crisp, clear, and detailed.

Pivoting Mechanism:
The tweeter can pivot, providing the ability to direct sound precisely towards the listening area. This feature is particularly useful in installations where the speaker placement may not be directly aligned with the primary listening position, ensuring that all listeners enjoy a uniform audio experience.


Innovative Design and Construction

The D83 is built with a focus on durability, ease of installation, and superior sound quality.

X-Wave™ Surround Technology:
The X-Wave™ surround technology incorporated in the woofer design helps minimise distortion and prevent the cone from breaking up during high excursions. This results in cleaner, more accurate sound reproduction across all volume levels.

Compression-Molded Woofer Basket: The woofer basket is constructed using compression molding, which provides excellent rigidity and stability. This design choice reduces unwanted vibrations and enhances the overall durability of the speaker, ensuring consistent performance over time.
Acoustic Performance

The D83 is designed to provide a comprehensive and balanced soundstage, covering a wide frequency spectrum from low bass to high treble.

Frequency Response: The speaker boasts an impressive frequency response range of 38Hz to 20kHz. This wide range ensures that the D83 can reproduce a full spectrum of sound, from deep, resonant lows to crystal-clear highs, making it versatile for various audio applications.

Sensitivity: With a sensitivity of 91 dB, the D83 is highly efficient, meaning it can produce high sound levels with less power. This efficiency is beneficial for systems with lower power amplifiers, allowing the speaker to deliver strong performance without requiring a high-powered setup.

Impedance: The speaker's nominal impedance is 6 ohms, which strikes a balance between power handling and compatibility. This impedance level allows the D83 to work effectively with a wide range of amplifiers, ensuring easy integration into existing audio systems.


Ease of Installation

Origin Acoustics has prioritised user-friendly installation features, making the D83 an excellent choice for both professional installers and DIY enthusiasts.

Tool-Less Mounting System: The D83 features a patented tool-less mounting system that simplifies the installation process. This system uses a spring-loaded mechanism that securely holds the speaker in place, making it easy to install without the need for additional tools.

Magnetic Grille: The speaker includes a magnetic, paintable grille that blends seamlessly with the ceiling. This grille can be easily attached or removed, providing easy access to the speaker for adjustments or maintenance. The paintable feature allows the grille to be customised to match the ceiling colour, ensuring a discreet and unobtrusive appearance.
Origin Acoustics Director Series ceiling speakers are engineered for high-fidelity audio and easy installation. They feature pivoting DPSD™ (Dual Plane Stabilised Diaphragm) tweeters, allowing precise sound direction, and utilise advanced materials for clear, distortion-free audio. The series offers models in various sizes, with tool-less installation and seamless integration into any ceiling. The speakers are designed for both residential and commercial applications, providing powerful performance with aesthetic minimalism.
