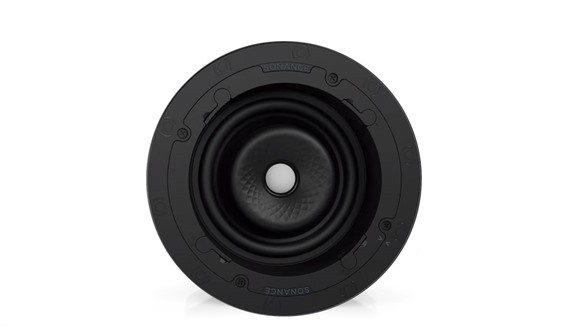

Sonance VX64R Ceiling Speaker (Pair)

£609.00

The Sonance VX64R is a 6.5-inch two-way in-ceiling speaker from the Visual Experience Series, engineered for superior audio performance and seamless integration. It features a 1-inch (25mm) ceramic dome tweeter with a Ferrofluid-cooled acoustic back chamber and a 6.5-inch (165mm) textured polypropylene cone woofer with a rubber surround. Both drivers are pivotable, allowing for precise sound direction. The speaker offers a frequency response of 45Hz to 20kHz (±3dB) and power handling from 5 to 125 watts RMS, ensuring dynamic and clear audio. Its Flex Frame mounting system provides flexibility for one or two-stage installation, simplifying the process for both new constructions and retrofit projects.

Technical Specifications

Frequency Response: 45Hz - 20kHz
Impedance: 8 ohms
Sensitivity: 89 dB (1W@1M)
Power Handling: 5 - 125 watts

Drivers: 6.5-inch textured polypropylene cone and 1-inch ceramic dome tweeter

Overall Dimensions (with grille): 235 mm
Cut-Out Dimensions: Diameter 210 mm
Mounting Depth: 125 mm
Mounting Technology: 4 x RotoLock Clamps

Acoustic Performance

At the core of the VX64R is a 6.5-inch (165mm) textured polypropylene woofer with a rubber surround, paired with a 1-inch (25mm) ceramic dome tweeter. The tweeter is ferrofluid-cooled and housed in an acoustic back chamber, ensuring precise high-frequency reproduction. Both drivers are pivotable, allowing for optimal sound directionality.

The speaker offers a frequency response of 45Hz to 20kHz (±3dB), providing a balanced and immersive audio experience. With a sensitivity of 89dB SPL (2.83V/1 meter) and power handling capabilities ranging from 5 to 125 watts, the VX64R is capable of delivering robust audio performance suitable for various applications.

Innovative Design Features

The VX64R incorporates Sonance's Sinusoidal Textured Waveguide technology, promoting even sound dispersion for consistent audio quality throughout the room. The coincident pivoting of the woofer and tweeter allows for precise alignment of the sound field, enhancing the listening experience.

Seamless Integration and Aesthetic Flexibility

Aesthetically, the VX64R offers flexibility with its paintable slimline magnetic grille, available in both round and square options. The brilliant white micro trim grille features a bezel 50% smaller than previous models, minimising visual impact.

For a more modern look, an optional trimless grille provides a monolithic aesthetic. These design choices ensure the speakers blend effortlessly into various ceiling styles and room decors.

Installation and Compatibility

Designed for efficiency, the VX64R utilises a Flex Frame mounting system, allowing for either a single-stage or two-stage installation process. This approach simplifies the installation process, making it accessible for both professionals and DIY enthusiasts.

Sonance Visual Experience Series Ceiling Speakers

Engineered for superior performance and aesthetics, Visual Experience Series ceiling speakers feature the latest advancements in driver, tweeter and crossover design, ensuring exceptional sound quality and a refined appearance.
