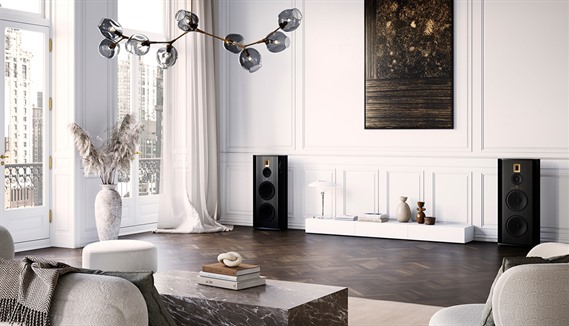

Steinway Lyngdorf Model A

The Steinway & Sons Model A loudspeaker by Steinway Lyngdorf offers exceptional sound performance optimised for room-friendly placement against a wall. Combining advanced technology, exceptional sound quality, and elegant craftsmanship, the Model A offers an unparalleled audio experience for discerning audiophiles and professionals. Whether used in a living room, media room, or any other space, the Model A delivers outstanding performance and aesthetics, setting a new standard in high-fidelity audio.
Technical Specifications

Tweeter: Air Motion Transformer, Kapton foil, Neodymium magnet

Midrange
: 6.5-inch anodised aluminum cone, vented magnet with copper-clad pole piece, 35mm two-layer voice coil, molded aluminum basket

Woofers:
Two 12-inch anodised aluminum cones, vented double magnet with copper ring, 75mm four-layer voice coil, molded aluminum basket

Enclosure:
Closed cabinet, aluminum and MDF, steel base

Frequency Range:
25 Hz – 22,000 Hz (-3 dB)

Amplification:
A1 or A2 Amplifier, 2 x 400 watt per loudspeaker

Max SPL @ 1m:
114 dB

Crossover:
Digital crossover stored in processor (200 Hz for Woofer/Midrange, 2200 Hz for Midrange/Tweeter)

Connections:
Neutrik speakON
Placement: Floor-standing, against the wall

Dimensions (W x H x D):
500 x 1150 x 270 mm (19.7 x 45.3 x 10.6 inches, including base plinth)

Weight:
76 kg (168 lbs)
Finish: Black piano finish, custom finishes available


Design and Craftsmanship

The Model A boasts a distinctive design inspired by Steinway & Sons pianos, featuring a black piano finish, black strings, and matte gold details. Each loudspeaker is assembled and finished by hand in Denmark, ensuring the highest quality standards. Custom finishes, including polished gold details and other lacquers, are available upon request, allowing for personalised aesthetic integration into any living space.
Room-Friendly Design

The Model A features a shallow, closed-cabinet design optimised for placement against a wall. This setup ensures the speaker can deliver room-filling sound while maintaining a sleek, space-saving profile. The design is ideal for environments where space is at a premium, providing flexibility without sacrificing audio quality.

Air Motion Transformer Tweeter

The tweeter in the Model A utilises an Air Motion Transformer (AMT) with an ultra-thin, folded Kapton diaphragm and powerful neodymium magnets. This design offers high-resolution, distortion-free performance, ensuring clarity and detail across all frequencies. The tweeter's precision ensures that even the most complex musical passages are reproduced with stunning accuracy.

High-Performance Midrange Driver

The Model A is equipped with a 6.5-inch anodised aluminum midrange driver. This driver features a vented magnet with a copper-clad pole piece and a two-layer voice coil, providing outstanding clarity and resolution. The midrange driver seamlessly integrates with the tweeter and woofers, delivering a balanced and natural sound.

Powerful Woofers


Two 12-inch woofers deliver deep and defined bass. Despite the speaker's shallow design, the large woofers provide a powerful and dynamic low-frequency response. Each woofer cone is made from anodised aluminum and features vented double magnets with copper rings and four-layer voice coils, ensuring low distortion and high power handling.

Integrated System Approach

The Model A is designed to work seamlessly with Steinway & Sons A1 or A2 digital power amplifiers. This integrated system approach ensures optimal performance, with the Steinway & Sons processors managing the active crossover in the digital domain. The RoomPerfect™ technology further adapts the system to the room's acoustics, providing the best possible sound performance in any environment.
Sound Performance

The Model A delivers outstanding clarity and defined bass, making no compromises in loudspeaker technology. The AMT tweeter and midrange driver provide exceptional resolution, while the powerful woofers ensure deep and dynamic bass. The closed-cabinet design and advanced RoomPerfect™ technology adapt the speaker's output to the room's acoustics, ensuring optimal performance in any setting.

Exceptional Sound Quality


The Model A combines cutting-edge technology with meticulous craftsmanship to deliver superior sound quality. Its ability to reproduce high-resolution audio with clarity and precision makes it ideal for both music and cinematic experiences.

Flexible Placement


The shallow, closed-cabinet design allows the Model A to be placed against a wall, making it suitable for a wide range of room configurations. This flexibility ensures that the speaker can deliver high-fidelity sound without dominating the room's aesthetics.


Advanced Room Adaptation

The integrated RoomPerfect™ technology ensures that the Model A adapts to the acoustics of any room, delivering consistent and optimised sound performance regardless of the room's shape or size.

Luxurious Craftsmanship

Handcrafted in Denmark, the Model A features a design inspired by Steinway & Sons pianos. Its elegant finish and customisable options make it a luxurious addition to any high-end audio system.
Steinway & Sons

Steinway & Sons speakers, crafted by Steinway Lyngdorf, represent the pinnacle of audio performance and design.
Renowned for their exceptional sound quality and luxurious aesthetics, these speakers are engineered to deliver an unparalleled listening experience.
Steinway & Sons Model C


Experience the extraordinary

We invite you to expereince the Steinway Lyngdorf range of speakers first hand at our Essex showroom. Appointments are available Monday - Friday, please call us on 01732 807 579 for more information.
Steinway Lyngdorf Model O

Explore the Steinway & Sons speaker range

Since its inception in 2005, Steinway Lyngdorf has stood at the forefront of the audio industry, each product, from the smallest electronic component to the most imposing speaker, exemplifies perfection. The fusion of cutting-edge technology and artisanal craftsmanship is the hallmark of Steinway Lyngdorf, setting their products apart in the realm of high-end audio.

> Explore the Steinway Lyngdorf range of speakers
> Download the Steinway Lyngdorf brochure
Steinway Lyngdorf Model S Soundbar

Perfect room acoustics

RoomPerfect™, created by Peter Lyngdorf, is the culmination of over twenty years of groundbreaking audio research and development. This intelligent system not only analyses the sound characteristics of your speakers but also takes specific measurements of your room's acoustics.

It then adjusts the signal through a twenty-minute process, resulting in audio perfectly tailored to the unique shape, size, and acoustic properties of your room.
