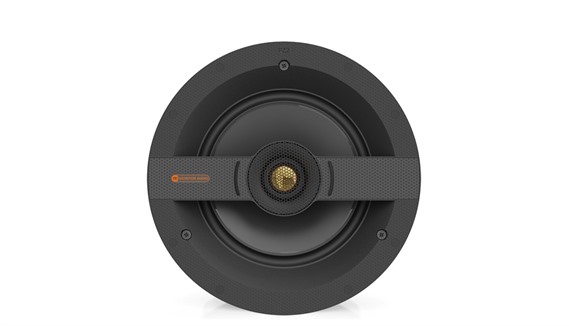

Monitor Audio C1M Ceiling Speaker

£300.00

The Monitor Audio C1M is a premium in-ceiling speaker from the Creator Series, designed for high-quality audio performance in a discreet form factor. This medium-sized, two-way speaker features a 7-inch C-CAM (Ceramic-Coated AluminumMagnesium) mid-bass driver and a 1-inch C-CAM tweeter with a UD Waveguide, providing a frequency response of 35 Hz to 30 kHz. It offers a sensitivity of 86 dB and can handle up to 65W RMS power, with a maximum SPL of 113 dB. The C1M includes the patented Quik-Link speaker cable connector for easy installation and the Tri-Grip II mounting system for secure fitment.

Technical Specifications

Frequency Response: 35Hz - 30kHz
Impedance: 8 ohms
Sensitivity: 86 dB (1W@1M)
Power Handling: 35 - 130 watts

Drivers: 7-inch C-CAM mid-bass driver and 1-inch C-CAM tweeter

Overall Dimensions (with grille): 242 mm x 103 mm
Cut-Out Dimensions: Diameter 212 mm
Mounting Depth: 99 mm
Weight: 1.9 kg

Monitor Audio LIfetime Warranty

Applications and Use Cases

The C1M is versatile, suitable for a variety of applications including home theaters, multi-room audio systems, and commercial installations.

Its ability to deliver detailed sound makes it ideal for both background music and critical listening environments.

The robust construction and high-quality materials ensure longevity and consistent performance, even in demanding applications.

You May Also Like...

> Monitor Audio C1S Ceiling Speaker
> Monitor Audio C1L Ceiling Speaker

C-CAM Drivers

The C1M incorporates Monitor Audio's proprietary C-CAM technology, utilised in both the mid-bass driver and the tweeter, known for its excellent strength-to-weight ratio, rigidity, and low distortion characteristics.

7" C-CAM Mid-Bass Driver: This driver delivers powerful bass and clear midrange frequencies. The use of C-CAM material helps in reducing distortion, resulting in a more accurate and detailed sound reproduction.

This driver is especially capable of handling complex musical passages and cinematic sound effects, making it an ideal choice for home theaters.

1" C-CAM Tweeter with UD Waveguide: The tweeter is equipped with a Uniform Dispersion (UD) Waveguide, which enhances the dispersion characteristics, providing a more uniform sound field.

This design helps in creating a more immersive audio experience, whether the speaker is used in a multi-room setup or a dedicated listening space.

Installation Features

Ease of installation is a key consideration in the design of the C1M, making it suitable for a wide range of applications, from new construction to retrofits.

Quik-Link Connector: The patented Quik-Link connector system simplifies the speaker wiring process, making it easier and faster to install multiple speakers.

This connector ensures a secure and reliable connection, reducing the risk of poor contact or connection issues.

Tri-Grip II Mounting System: The Tri-Grip II mounting system is designed to provide a firm and secure fit. This three-point fixing system ensures that the speaker is held securely in place, minimising vibrations that could affect sound quality.

The system also facilitates easy installation and removal, making it convenient for installers.

Design and Aesthetic Customisation

The C1M is designed to blend seamlessly into any environment, with features that allow for aesthetic customisation.

Low-Profile, Paintable Grilles: The speaker comes with a low-profile grille that can be painted to match the ceiling, ensuring a discreet installation. This feature is particularly valuable in architectural and interior design-focused installations, where maintaining the aesthetic integrity of the space is crucial.

Optional Grille Shapes: The C1M offers optional round and square grilles, providing flexibility in design choices to match different interior styles. Premium grille options are also available for those seeking a more refined finish.

Performance

The C1M is engineered to deliver outstanding audio performance, with specifications that support its high-fidelity capabilities.

Frequency Response: 35 Hz to 30 kHz, covering a wide range of audio frequencies to ensure that both music and dialogue are reproduced accurately and with clarity.

Sensitivity: Rated at 86 dB, the C1M is efficient and capable of producing high sound levels without requiring excessive amplifier power.

Power Handling: The speaker can handle up to 65W RMS (continuous power) and 130W peak, allowing it to perform well in both moderate and high-power setups.

Impedance: The nominal impedance of 8 ohms, with a minimum impedance of 6.5 ohms at 150 Hz, ensures compatibility with a wide range of amplifiers and audio systems.

Dimensions and Weight: With a mounting depth of 99 mm and a cut-out diameter of 212 mm, the C1M is compact enough for various ceiling installations, providing flexibility for use in different room sizes and configurations.

Tri-Grip II

Tri-Grip II is an advanced mounting system used in Monitor Audio's Creator Series speakers. It features a three-point fixing mechanism that provides a secure and stable attachment to ceilings or walls. This system minimises vibrations and ensures optimal sound quality. The Tri-Grip II also allows for quick and easy installation, making it user-friendly for both professional installers and DIY enthusiasts. It's designed to accommodate various architectural settings and ensure a flush, aesthetically pleasing finish.

Quick-Link

Quick-Link is an innovative feature designed for easy and efficient speaker installation. This connector system simplifies the wiring process, allowing for quick and secure connections between the speaker and the amplifier or receiver. It is particularly beneficial in multi-speaker setups, where it significantly reduces the time and effort required for installation. The Quick-Link system is a standard feature in Monitor Audio's Creator Series, ensuring reliable and hassle-free installations across various environments.

Tier 1 Ceiling Speakers

A versatile range of small, medium and large speakers designed for cost-effective installations, prioritising product simplicity and reliable acoustic performance.

Features
Two-way arrangement
C-CAM mid-bass drivers
C-CAM tweeter with UD Waveguide I
Tri-Grip II
Quik-Link

Tier 2 Ceiling Speakers

This range of small, medium and large in-ceiling speakers retains the engineering excellence of Tier 1 while offering enhanced acoustic performance. It includes additional features like boundary correction, high-frequency cut/boost, and the dual-stereo T2X, providing greater flexibility in speaker placement.

Features
Two-way arrangement
RST II mid-bass drivers
C-CAM tweeter with UD Waveguide II
Controlled Performance
T2X-Model
Tri-Grip II
Quik-Link

Tier 3 Ceiling Speakers

This high-performance range of medium and large in-ceiling speakers builds on the engineering excellence of Tier 2, offering enhanced acoustic performance. It includes additional features for versatile speaker placement, such as boundary correction and mid/high-frequency cut/boost options, along with advanced acoustic technologies.

Features
Three-way arrangement
RDT III bass drivers
IDC II coaxial mid/tweeter drivers with UD Waveguide II
Controlled Performance
Tri-Grip II
Quik-Link

Monitor Audio Creator Series Speakers

Monitor Audio Creator Series ceiling speakers offer a range of high-quality, in-ceiling audio solutions designed for versatile applications. These speakers feature advanced C-CAM (Ceramic-Coated Aluminum/Magnesium) drivers, including mid-bass drivers and tweeters, which provide exceptional sound clarity and detail. Creator Series ceiling speakers are ideal for both residential and commercial installations.

View the full range of Creator Series speakers
