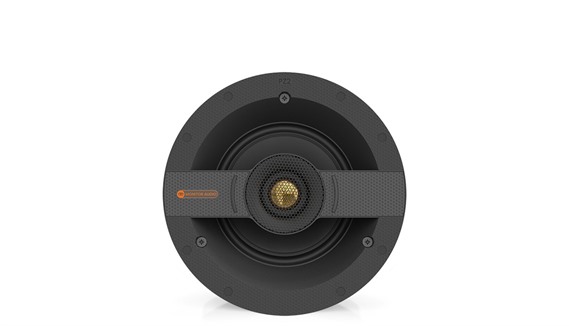

Monitor Audio C1S Ceiling Speaker

£250.00
The Monitor Audio C1S in-ceiling speaker, part of the Creator Series, is a versatile two-way design engineered for high-quality sound reproduction in a compact form. It features a 5-inch C-CAM (Ceramic-Coated AluminumMagnesium) mid-bass driver and a 1-inch C-CAM tweeter. The C1S delivers an impressive frequency response from 40 Hz to 30 kHz, ensuring a full range of sound with detailed highs and robust lows. The speaker handles up to 50W RMS power, making it suitable for various audio applications, including home theater systems and multi-room setups.
Technical Specifications

Frequency Response: 40Hz - 30kHz
Impedance: 8 ohms
Sensitivity: 84 dB (1W@1M)
Power Handling: 25 - 100 watts

Drivers:
5-inch C-CAM mid-bass driver and 1-inch C-CAM tweeter

Overall Dimensions (with grille):
201 mm x 103 mm
Cut-Out Dimensions: Diameter 171 mm
Mounting Depth: 99 mm
Weight: 1.4 kg


Monitor Audio Lifetime Warranty

Compact and Versatile

With a compact design and shallow mounting depth, the C1S is versatile enough for a variety of installation scenarios, including spaces with limited ceiling clearance.

Its unobtrusive form factor does not compromise sound quality, making it a practical choice for both high-end residential applications and commercial environments like offices, restaurants, and retail spaces.
C-CAM Drivers

The C1S features Monitor Audio's proprietary C-CAM (Ceramic-Coated Aluminum/Magnesium) technology in both its mid-bass driver and tweeter, delivering high-fidelity audio with minimal distortion.

5" C-CAM Mid-Bass Driver: This driver is crafted to offer exceptional rigidity and lightness, allowing for a precise reproduction of mid and low frequencies.

The result is a clear, detailed bass response that does not overpower the midrange, making it perfect for music and dialogue clarity in multi-room systems or home theaters.

1" C-CAM Tweeter: The tweeter provides a smooth and extended high-frequency response. It features a pivoting design, enabling fine-tuning of the sound direction towards the listening area, which is particularly beneficial in setups where precise audio imaging is crucial.


Quik-Link Connector

One of the standout features of the C1S is the Quik-Link connector. This innovative design element simplifies the wiring process significantly, allowing for a quicker and more secure connection during installation.

The Quik-Link system is especially useful for large projects or when multiple speakers are being installed, as it reduces installation time and minimises potential errors.
Tri-Grip II Mounting System

The Tri-Grip II mounting system is a robust and user-friendly feature that ensures secure speaker placement with minimal effort. This system provides a more secure hold than traditional clamping methods, minimising vibrations that can negatively impact sound quality.

The Tri-Grip II's three-point fixing mechanism offers three times the surface area contact compared to standard mounting brackets, enhancing stability and acoustic performance.


Aesthetic Design and Customisation

The C1S is designed to be discreet, with a low-profile, paintable grille that allows it to blend seamlessly into any ceiling. This makes the speaker ideal for settings where aesthetics are as important as audio quality.

For additional customisation, the C1S offers optional square grilles, enabling users to choose a design that best fits their interior décor.
